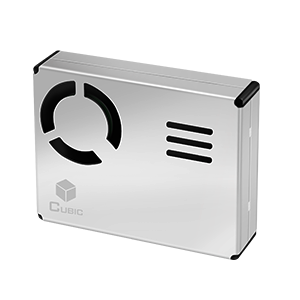

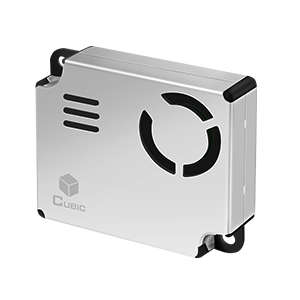

PM2008 레이저 입자 센서



PM2008-API 레이저 입자 센서 모듈은 레이저 산란 기술을 기반으로 하며, 모든 금속 차폐로 설계된 초박형(12mm) 제품입니다.공기 중 0.3μ~10μm의 입자 농도 크기를 감지하고 수학적 알고리즘과 과학적 보정을 통해 실시간으로 PM1.0, PM2.5, PM10을 μg/m3 단위로 출력합니다.



특징



• 간편한 설치를 위한 Hanging ear 행잉 이어 디자인
• 실시간 출력 PM1.0, PM2.5, PM10(μg/m3) 가능
• 모든 금속 차폐, 강력한 간섭 방지
• 작고 얇은 구조 설계, 높이 12mm에 불과
• 고정밀, 고감도, 빠른 응답(≤8초)
• 신호 출력 옵션: UART, I²C



Specification



Measured particle size	0.3μm~10μm
Measurement range	0~5000μg/m³
Measurement accuracy for PM1.0&PM2.5	0 ~35μg/m³, ±5μg/m³ 35μg/m³~500μg/m³, ±15% of reading
Measurement accuracy for PM10	0~100μg/m³, ±30μg/m³ 101 ~500μg/m³, ±30% of reading
Condition	25±2℃,50±10%RH
Reference instrument	GRIMM
Dust Source	Cigarette +Arizona A1
Time to first reading	≤8s
Response time	1s
Working temperature	-10℃~60℃
Working humidity	0~95%RH(non-condensing)
Power supply	DC5V±0.1V
Ripple wave	<50mV
Working current	<100mA(working); <200μA(standby)
Signal output	UART_TTL, I²C, PWM(customized)
Dimensions	W47.8*H36.8*D12(mm)
