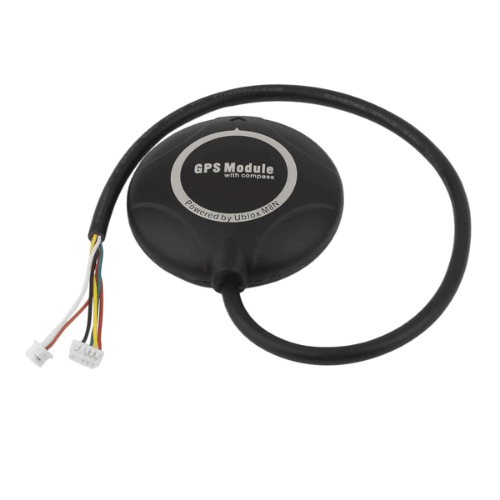

NEO-M8N GPS 모듈



• GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1
  SBAS L1 C/A: WAAS, EGNOS, MSAS
  Galileo-ready E1B/C (NEO-M8N)
  Nav. update rate1 Single GNSS: up to 18 HZ
  Concurrent GNSS: up to 10 Hz
  Position accuracy2 2.0 m CEP
  Acquisition2 Cold starts: 26 s
  Aided starts: 2 s
  Reacquisition: 1.5 s
  Sensitivity2 Tracking & Nav: –167 dBm
  Cold starts: –148 dBm
  Hot starts: -156 dBm
  Assistance AssistNow GNSS Online
  AssistNow GNSS Offline (up to 35 days)3
  AssistNow Autonomous (up to 6 days)
  OMA SUPL & 3GPP compliant
  Oscillator TCXO (NEO-M8N/Q),
  Crystal (NEO-M8M)
• Specifications:
  GPS line order:
  black wire: GND
  Green line: TX
  Yellow Line: RX
  Red Line: + 5V
  White Line: SDA
  Orange Line: SCL
  Color: Black
  Size:53*53*10mm/2.09*2.09*0.39inch







참고 문서: https://randomnerdtutorials.com/esp32-neo-m8n-gps-logger-google-earth/
