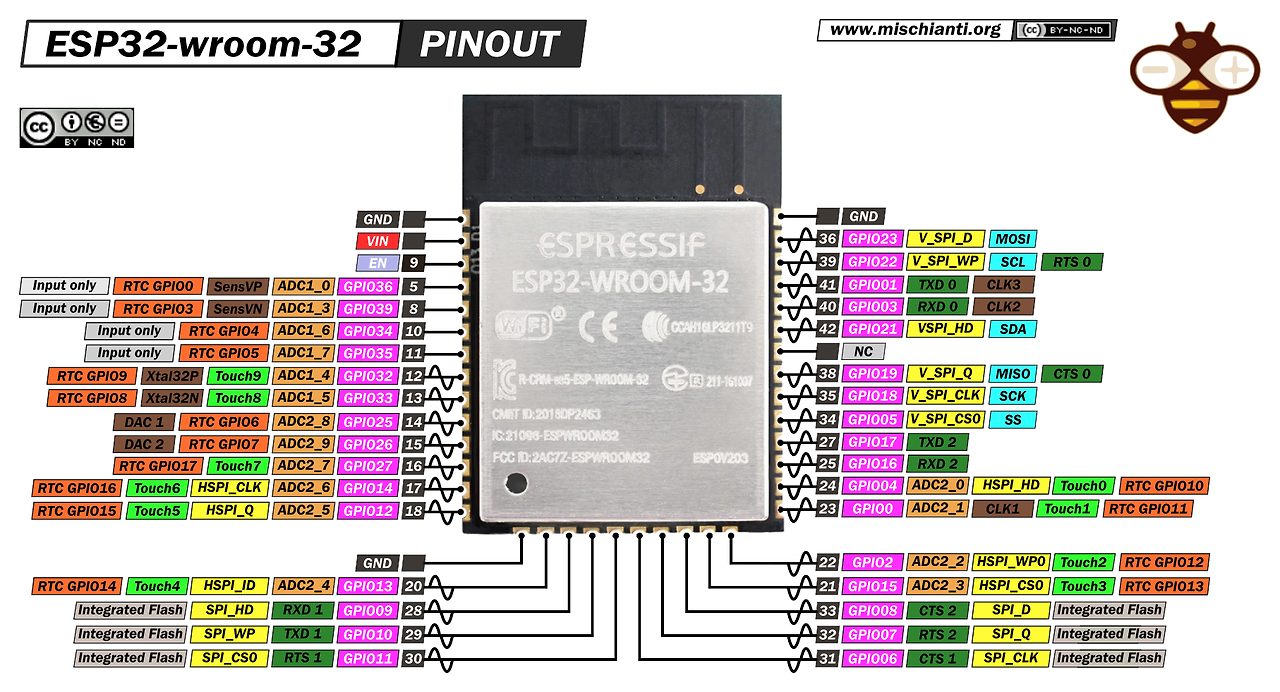

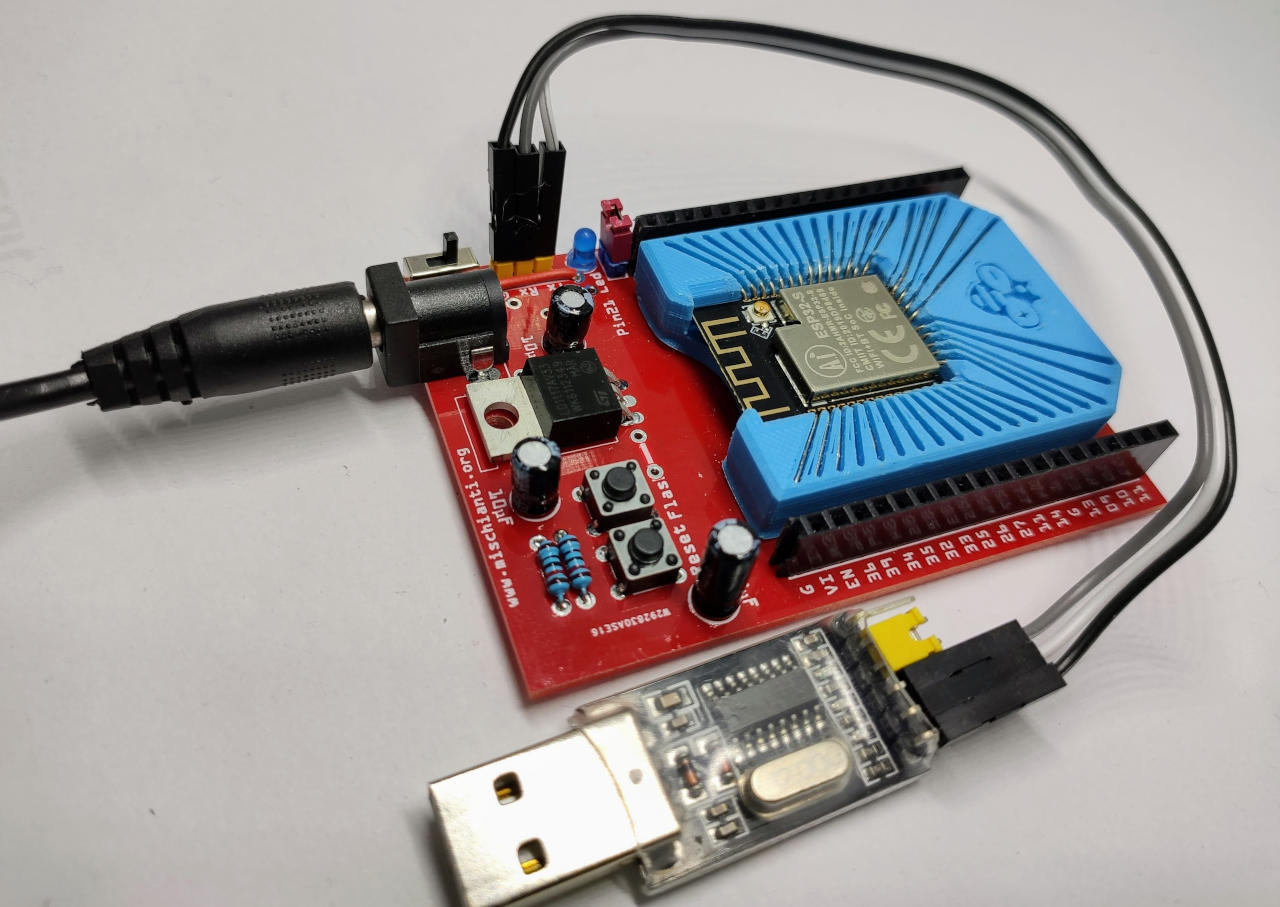

ESP32-wroom-32 high resolution pinout and specs



ESP32-wroom-32 고해상도 핀아웃 및 사양



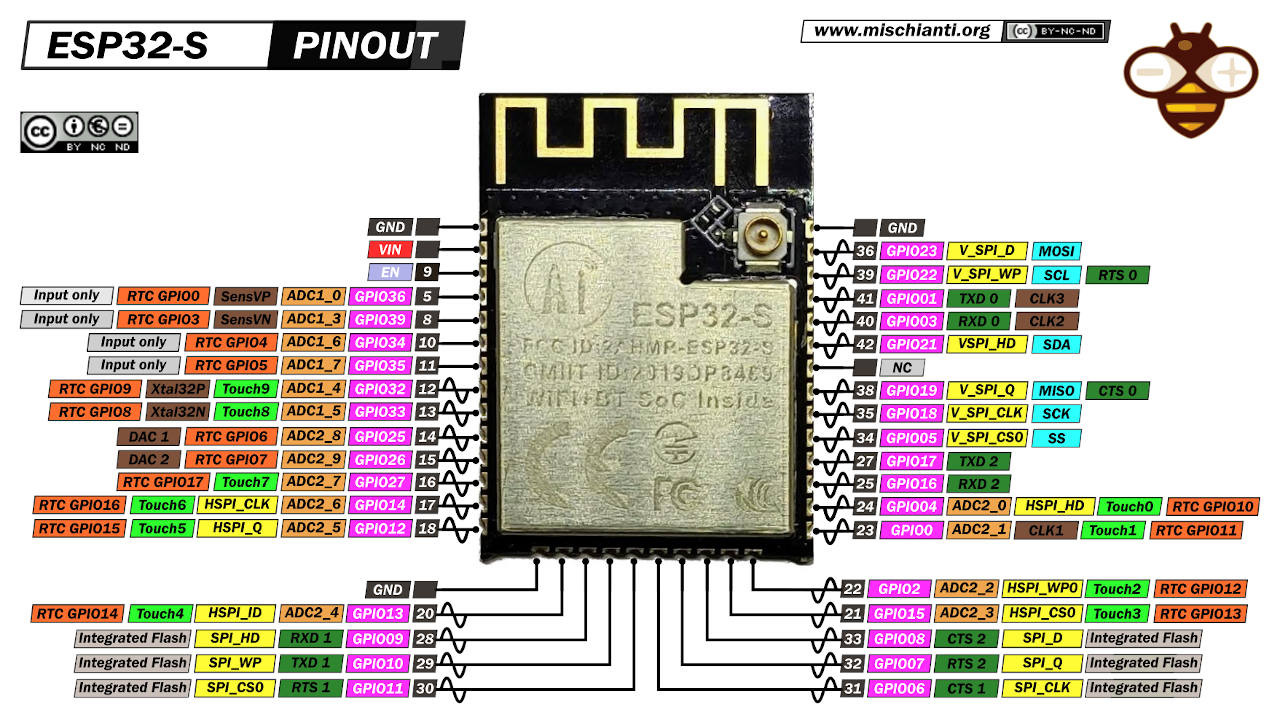

이미지를 클릭하면 많이 커집니다. 자료 출처는 당연히 표기하는 게 의리!



이 자료 참고



esp32-wroom-32_datasheet_en.pdf

0.40MB















Specs

• CPU and Memory
  • Xtensa® Dual-Core 32-bit LX6 microprocessors, up to 600 DMIPS
  • 448 KByte ROM
  • 520 KByte SRAM
  • 16 KByte SRAM in RTC
  • QSPI Flash/SRAM, up to 4 x 16 MBytes
  • Power supply: 2.2 V to 3.6 V
• Clocks and Timers
  • Internal 8 MHz oscillator with calibration
  • Internal RC oscillator with calibration
  • External 2 MHz to 40 MHz crystal oscillator
  • External 32 kHz crystal oscillator for RTC with calibration
  • Two timer groups, including 2 x 64-bit timers and 1 x main watchdog in each group
  • RTC timer with sub-second accuracy
  • RTC watchdog
• Advanced Peripheral Interfaces
  • 12-bit SAR ADC up to 18 channels
  • 2 × 8-bit D/A converters
  • 10 × touch sensors
  • Temperature sensor
  • 4 × SPI
  • 2 × I2S
  • 2 × I2C
  • 3 × UART
  • 1 host (SD/eMMC/SDIO)
  • 1 slave (SDIO/SPI)
  • Ethernet MAC interface with dedicated DMA and IEEE 1588 support
  • CAN 2.0
  • IR (TX/RX)
  • Motor PWM
  • LED PWM up to 16 channels
  • Hall sensor
  • Ultra low power analog pre-amplifier
• Operating Temperature Range: -40 ° C to + 85 ° C
• Package size: 18mm x 25mm x 3mm
