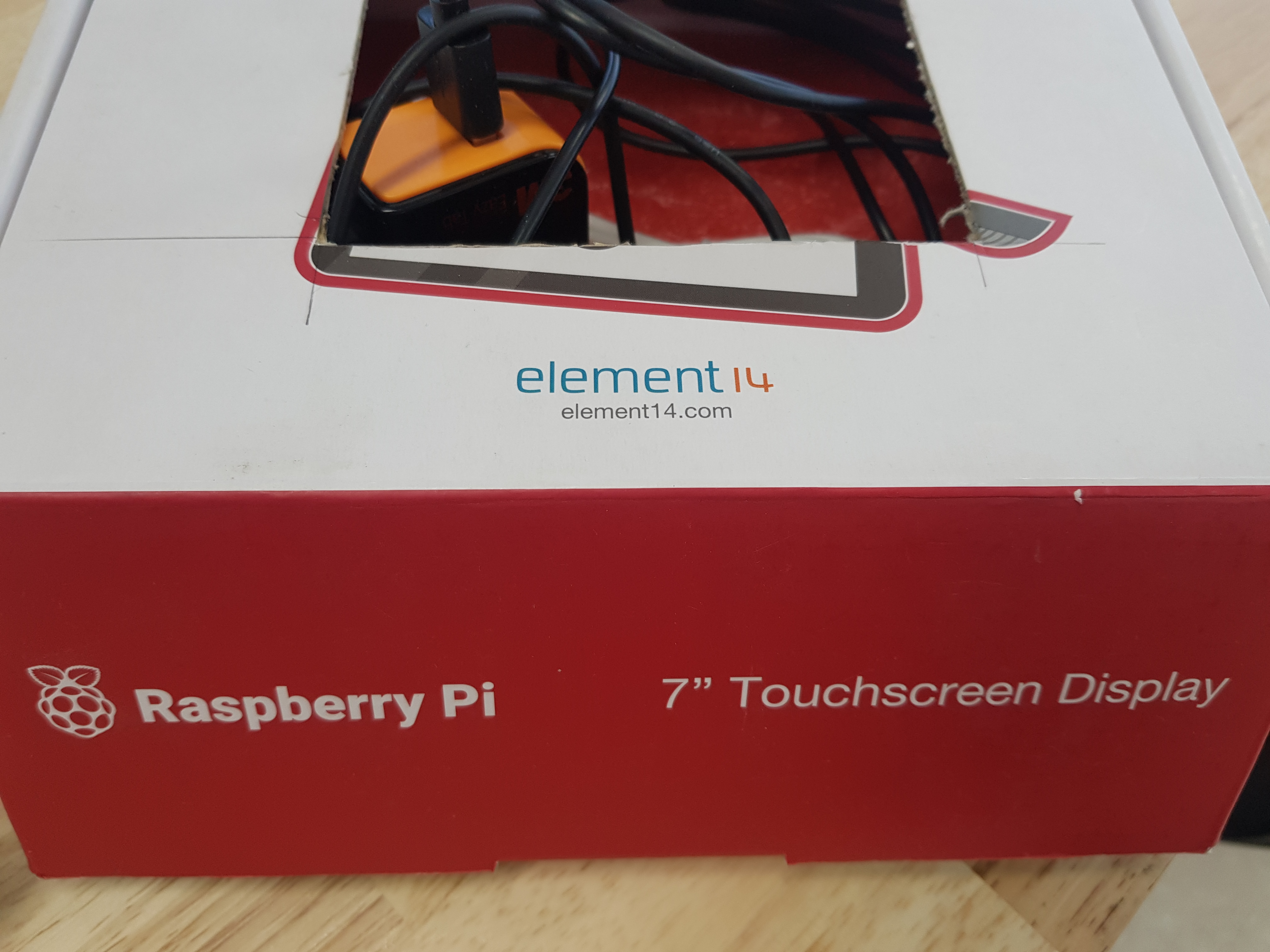

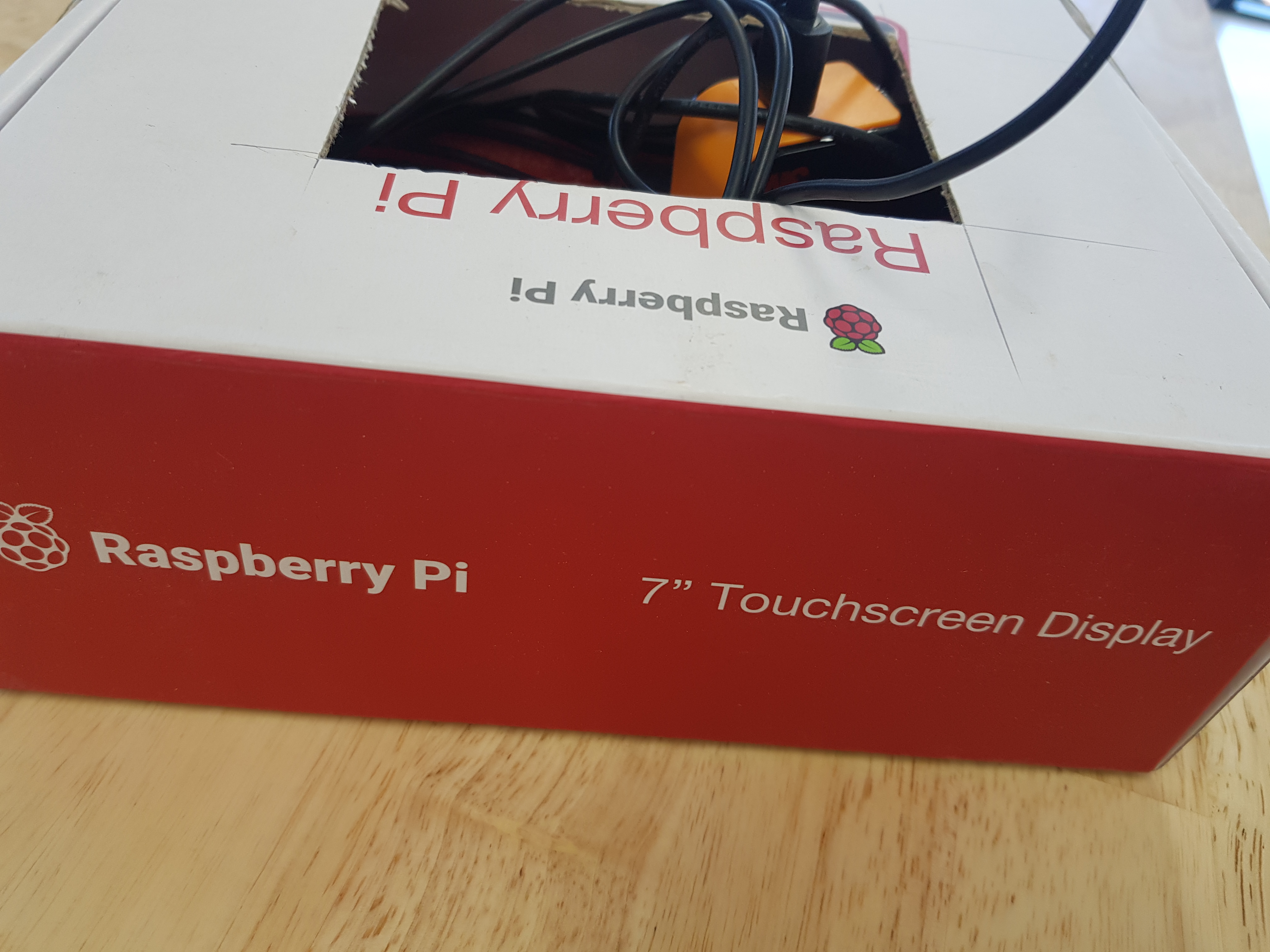

라즈베리파이 공식 7인치 터치스크린 (Raspberry-Pi Touch Display) (Rev 1.1)

라즈베리파이 공식 7인치 터치스크린 (Raspberry-Pi Touch Display) (Rev 1.1)


Raspberry Pi 재단의 공식 Touchscreen Display 제품 / 해상도 800 x 480 / 라즈베리파이2 모델 B, 라즈베리파이 B+, A+ 모두 호환


Technical Specification


7" Touchscreen Display
Screen Dimensions: 194mm x 110mm x 20mm (including standoffs)
Viewable screen size: 155mm x 86mm
Screen Resolution 800 x 480 pixels
10 finger capacitive touch
Connects to the Raspberry Pi board using a ribbon cable connected to the DSI port
Adapter board is used to power the display and convert the parallel signals from
the display to the serial (DSI) port on the Raspberry Pi
Will require the latest version of Raspbian OS to operate correctly


Features and Benefits


Turn your Raspberry Pi into a touch screen tablet, infotainment system, or standalone device.
Truly Interactive - the latest software drivers will support a virtual 'on screen' keyboard, so there is no need to plug in a keyboard and mouse.
Make your own 'Internet of Things' (IoT) devices including a visual display. Simply connect your Raspberry Pi, develop a Python script to interact with the display, and you're ready to create your own home automation devices with touch screen capability.
A range of educational software and programs available on the Raspberry Pi will be touch enabled, making learning and programming easier on the Raspberry Pi.



Kit Contents


7" Touchscreen Display
Adapter Board
DSI Ribbon cable
4 x stand-offs and screws (used to mount the adapter board and Raspberry Pi board to the back of the display
4 x jumper wires (used to connect the power from the Adapter Board and the GPIO pins on the Pi so the 2Amp power is shared across both units)
NOTE: THE RASPBERRY PI AND POWER SUPPLY ARE NOT INCLUDED IN THIS KIT AND ARE SOLD SEPARATELY.



자세한 제품 설명 링크: 디바이스마트 http://www.devicemart.co.kr/goods/view?no=1273487
