아두이노의 OLED 화면 제어로 LED 밝기 제어

OLED 디스플레이와 푸시버튼을 사용하여 아두이노로 LED 밝기를 제어하는 방법 알아보기

필요한 구성품:

1- 아두이노 나노

2 - OLED 디스플레이

3 - 푸시버튼 4개

4 - RGB LED 모듈

5 - 브레드보드

6 - 연결 케이블

아두이노 코드 및 회로도

이 튜토리얼에서는 OLED 디스플레이를 사용하여 아두이노로 LED 밝기를 제어하는 방법을 배웁니다. 초보자에게 완벽한 이 단계별 가이드는 OLED 디스플레이의 도움으로 LED 밝기 수준을 조정하는 과정을 안내하여 프로젝트를 더욱 인터랙티브하고 시각적으로 매력적으로 만듭니다.

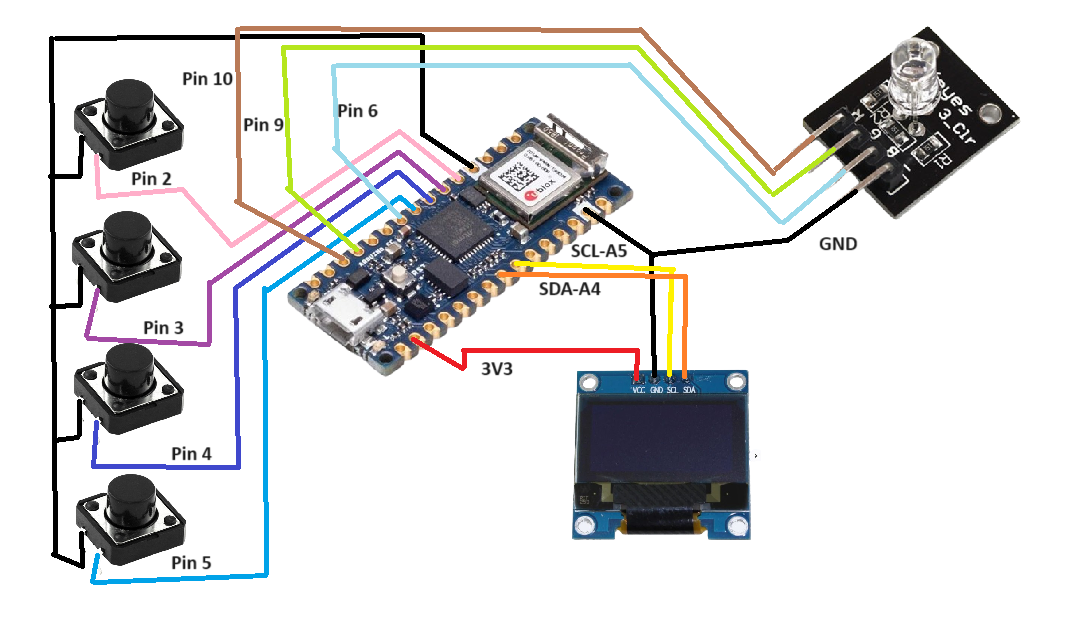

회로도

아두이노 코드 - MUIInput3BtnBounce2PWMRGBYT.ino

#include <Arduino.h>       // Include the Arduino library
#include <U8g2lib.h>       // Include the U8g2 library for the OLED display
#include <MUIU8g2.h>       // Include the MUIU8g2 library for the user interface
#include <Bounce2.h>       // Include the Bounce2 library for button debouncing

// Define pin numbers for buttons
#define SELECT_PIN 5
#define NEXT_PIN 4
#define DECREASE_PIN 3
#define INCREASE_PIN 2

// Define pin numbers for LEDs
#define RedLED 10
#define GreenLED 9
#define BlueLED 6

// Array of LED pins
const uint8_t ledPins[] = { BlueLED, RedLED, GreenLED };

// Array of animal names corresponding to LEDs
const char *animals[] = { "Blue", "Red", "Green", "BG", "BR", "GR", "BGR" };

// Mapping of animal names to LED pins
const int8_t animalToLed[][3] = {
  { BlueLED, -1, -1 },        // Blue LED only
  { RedLED, -1, -1 },         // Red LED only
  { GreenLED, -1, -1 },       // Green LED only
  { BlueLED, GreenLED, -1 },  // Blue and Green LEDs
  { BlueLED, RedLED, -1 },    // Blue and Red LEDs
  { GreenLED, RedLED, -1 },   // Green and Red LEDs
  { BlueLED, GreenLED, RedLED }  // All LEDs
};

// Create an instance of the OLED display using software I2C
U8G2_SSD1306_128X64_NONAME_1_SW_I2C u8g2(U8G2_R0, /* clock=*/ SCL, /* data=*/ SDA, /* reset=*/ U8X8_PIN_NONE);

// Create an instance of the MUIU8g2 library for user interface
MUIU8G2 mui;

// Create Bounce2 Button objects for each button
Bounce2::Button selectBtn = Bounce2::Button();
Bounce2::Button nextBtn = Bounce2::Button();
Bounce2::Button decreaseBtn = Bounce2::Button();
Bounce2::Button increaseBtn = Bounce2::Button();

// Variables to store current values
uint8_t num_value = 0;       // Current "Num:" value
uint8_t bar_value = 0;       // Current brightness value
uint16_t animal_idx = 0;     // Current index in the animal array

// Variables for button press timing
unsigned long lastButtonPress = 0;
const unsigned long buttonDelay = 50;  // Button delay in milliseconds
const uint8_t brightnessStep = 15;     // Step size for brightness adjustment

// Function to draw a horizontal line
uint8_t mui_hrule(mui_t *ui, uint8_t msg) {
  if (msg == MUIF_MSG_DRAW) {
    u8g2.drawHLine(0, mui_get_y(ui), u8g2.getDisplayWidth());
  }
  return 0;
}

// Function to display current data on the OLED
uint8_t show_my_data(mui_t *ui, uint8_t msg) {
  if (msg == MUIF_MSG_DRAW) {
    u8g2_uint_t x = mui_get_x(ui);
    u8g2_uint_t y = mui_get_y(ui);

    // Print the "Num:" value
    u8g2.setCursor(x+5, y);
    u8g2.print("Num:");
    u8g2.setCursor(x+50, y);
    u8g2.print(num_value);

    // Print the "Brig:" label and the bar
    u8g2.setCursor(x+5, y+12);
    u8g2.print("Brig:");

    // Calculate the available width for the bar
    u8g2_uint_t labelWidth = u8g2.getStrWidth("Brig:");
    u8g2_uint_t brightnessValueWidth = u8g2.getStrWidth(String(bar_value).c_str());
    u8g2_uint_t availableWidth = u8g2.getDisplayWidth() - (x + 5 + labelWidth + 10 + brightnessValueWidth); // 10 pixels for padding

    // Map bar_value (0-255) to availableWidth
    uint8_t barWidth = map(bar_value, 0, 255, 0, availableWidth);

    // Draw the bar
    u8g2.drawBox(x + 5 + labelWidth + 5, y + 6, barWidth, 8); // Adjust position for the bar

    // Print the brightness value
    u8g2.setCursor(x + 5 + labelWidth + barWidth + 10, y + 12); // Position after the bar
    u8g2.print(bar_value);

    // Print the "LED:" and the animal name
    u8g2.setCursor(x+5, y+24);
    u8g2.print("LED:");
    u8g2.setCursor(x+50, y+24);
    u8g2.print(animal_idx);
    u8g2.print("=");
    u8g2.print(animals[animal_idx]);
  }
  return 0;
}

// Function to get the count of animal names
uint16_t animal_name_list_get_cnt(void *data) {
  return sizeof(animals)/sizeof(*animals);
}

// Function to get the animal name at a specific index
const char *animal_name_list_get_str(void *data, uint16_t index) {
  if (index < sizeof(animals)/sizeof(*animals)) {
    return animals[index];
  }
  return "Unknown";
}

// Array of MUI function definitions
muif_t muif_list[] = {
  MUIF_U8G2_FONT_STYLE(0, u8g2_font_helvR08_tr),  // Font style 0
  MUIF_U8G2_FONT_STYLE(1, u8g2_font_helvB08_tr),  // Font style 1
  MUIF_RO("HR", mui_hrule),                       // Horizontal rule
  MUIF_U8G2_LABEL(),                              // Label
  MUIF_RO("GP",mui_u8g2_goto_data),               // Go to data
  MUIF_BUTTON("GC", mui_u8g2_goto_form_w1_pi),    // Button
  MUIF_U8G2_U8_MIN_MAX("NV", &num_value, 0, 6, mui_u8g2_u8_min_max_wm_mse_pi),  // Num value
  MUIF_U8G2_U8_MIN_MAX_STEP("NB", &bar_value, 0, 255, 1, MUI_MMS_2X_BAR, mui_u8g2_u8_bar_wm_mse_pf),  // Brightness value
  MUIF_U8G2_U16_LIST("NA", &animal_idx, NULL, animal_name_list_get_str, animal_name_list_get_cnt, mui_u8g2_u16_list_line_wa_mse_pi),  // Animal list
  MUIF_RO("SH", show_my_data),                    // Show data
  MUIF_EXECUTE_ON_SELECT_BUTTON("GO", mui_u8g2_btn_goto_wm_fi)  // Execute on select button
};

// Form definitions
fds_t fds_data[] =
MUI_FORM(1)
MUI_STYLE(1)
MUI_LABEL(5, 8, "4 Btn Bounce2 Lib")
MUI_STYLE(0)
MUI_XY("HR", 0,11)
MUI_DATA("GP",
    MUI_10 "Enter Data|"
    MUI_12 "Show Data")
MUI_XYA("GC", 5, 24, 0)
MUI_XYA("GC", 5, 36, 1)
MUI_FORM(10)
MUI_STYLE(1)
MUI_LABEL(5, 8, "Enter Data")
MUI_XY("HR", 0,11)
MUI_STYLE(0)
MUI_LABEL(5,23, "Num:")
MUI_LABEL(5,36, "Brig:")
MUI_LABEL(5,49, "LED:")
MUI_XY("NV", 50, 23)
MUI_XY("NB", 50, 36)
MUI_XYA("NA", 50, 49, 44)
MUI_XYAT("GO", 114, 60, 1, " Ok ")
MUI_FORM(12)
MUI_STYLE(1)
MUI_LABEL(5, 8, "Show Data")
MUI_XY("HR", 0,11)
MUI_STYLE(0)
MUI_XY("SH", 0, 23)
MUI_XYAT("GO", 114, 60, 1, " Ok ")
;

// Redraw flag
uint8_t is_redraw = 1;

void setup(void) {
  // Initialize the buttons
  selectBtn.attach(SELECT_PIN, INPUT_PULLUP);
  selectBtn.interval(5);
  selectBtn.setPressedState(LOW);

  nextBtn.attach(NEXT_PIN, INPUT_PULLUP);
  nextBtn.interval(5);
  nextBtn.setPressedState(LOW);

  decreaseBtn.attach(DECREASE_PIN, INPUT_PULLUP);
  decreaseBtn.interval(5);
  decreaseBtn.setPressedState(LOW);

  increaseBtn.attach(INCREASE_PIN, INPUT_PULLUP);
  increaseBtn.interval(5);
  increaseBtn.setPressedState(LOW);

  // Initialize the LED pins as outputs
  for (uint8_t i = 0; i < sizeof(ledPins); i+=12) {
    pinMode(ledPins[i], OUTPUT);
    analogWrite(ledPins[i], 0);
  }

  // Initialize the OLED display
  u8g2.begin();
  mui.begin(u8g2, fds_data, muif_list, sizeof(muif_list)/sizeof(muif_t));
  mui.gotoForm(1, 0);
}

// Check the state of the buttons
void check_events(void) {
  selectBtn.update();
  nextBtn.update();
  decreaseBtn.update();
  increaseBtn.update();
}

// Handle button events
void handle_events(void) {
  unsigned long currentMillis = millis();

  if (selectBtn.pressed()) {
    mui.sendSelect();
    is_redraw = 1;
  }
  if (nextBtn.pressed()) {
    mui.nextField();
    is_redraw = 1;
  }

  if (decreaseBtn.isPressed()) {
    if (currentMillis - lastButtonPress >= buttonDelay) {
      lastButtonPress = currentMillis;
      if (bar_value > 0) {
        bar_value -= brightnessStep;
        if (bar_value < 0) bar_value = 0;
        is_redraw = 1;
      }
    }
  }

  if (increaseBtn.isPressed()) {
    if (currentMillis - lastButtonPress >= buttonDelay) {
      lastButtonPress = currentMillis;
      if (bar_value < 255) {
        bar_value += brightnessStep;
        if (bar_value > 255) bar_value = 255;
        is_redraw = 1;
      }
    }
  }
}

// Update the brightness of the LEDs based on the current settings
void update_led_brightness() {
  // Turn off all LEDs
  for (uint8_t i = 0; i < sizeof(ledPins); i+=12) {
    analogWrite(ledPins[i], 0);
  }

  // Update LEDs based on current animal index and num value
  if (animal_idx == 0 && num_value == 0) {
    analogWrite(BlueLED, bar_value);
  } else if (animal_idx == 1 && num_value == 1) {
    analogWrite(RedLED, bar_value);
  } else if (animal_idx == 2 && num_value == 2) {
    analogWrite(GreenLED, bar_value);
  } else if (animal_idx == 3 && num_value == 3) {
    analogWrite(BlueLED, bar_value);
    analogWrite(GreenLED, bar_value);
  } else if (animal_idx == 4 && num_value == 4) {
    analogWrite(BlueLED, bar_value);
    analogWrite(RedLED, bar_value);
  } else if (animal_idx == 5 && num_value == 5) {
    analogWrite(GreenLED, bar_value);
    analogWrite(RedLED, bar_value);
  } else if (animal_idx == 6 && num_value == 6) {
    analogWrite(BlueLED, bar_value);
    analogWrite(GreenLED, bar_value);
    analogWrite(RedLED, bar_value);
  }
}

void loop(void) {
  if (mui.isFormActive()) {
    if (is_redraw) {
      u8g2.firstPage();
      do {
        check_events();
        mui.draw();
      } while (u8g2.nextPage());
      is_redraw = 0;
    }

    check_events();
    handle_events();
    update_led_brightness();
  } else {
    mui.gotoForm(1, 0);
  }
}

동작 이미지
