WS2812 5050 RGB LED는 내장 드라이버 칩을 통해 단 1개의 데이터 선만으로 여러 개의 LED 색상을 개별적으로 제어할 수 있는 스마트 LED입니다. 아두이노(Arduino)와 같은 마이크로컨트롤러를 사용하여 구동하는 방법은 다음과 같습니다. [1, 2, 3]
1. 핀 연결 방법
LED 모듈에는 보통 3개의 핀(+, -, 데이터)이 있습니다. [1]
- VCC (+): 5V 전원에 연결합니다.
- GND (-): 아두이노의 GND에 연결하여 접지합니다.
- DIN / D In: 데이터를 주고받을 핀으로, 아두이노의 디지털 PWM 핀(예: D6)에 연결합니다. [1]
주의사항: LED 개수가 많을 경우(보통 10~15개 이상), 아두이노의 5V 전원만으로는 전류가 부족해 LED가 깜빡이거나 꺼질 수 있습니다. 이 경우에는 별도의 5V 외부 전원을 사용해야 합니다.
2. 아두이노 라이브러리 설치 및 코드 업로드
- 아두이노 IDE 상단의 메뉴에서 [스케치] -> [라이브러리 포함하기] -> [라이브러리 관리...] 로 이동합니다. [1]
- 'NeoPixel'을 검색한 후, Adafruit NeoPixel 라이브러리를 설치합니다.
- [파일] -> [예제] -> [Adafruit_NeoPixel] -> strandtest 예제를 불러옵니다.
- 코드 내에서 LED가 연결된 핀과 LED 개수를 수정합니다.
- LED_PIN: 아두이노와 연결된 핀 번호 (예: 6)
- LED_COUNT: 사용하는 LED의 개수 (예: 1)
cpp
#include <Adafruit_NeoPixel.h>
#define PIN 6 // 데이터 핀
#define NUMPIXELS 16 // 제어할 LED 개수
Adafruit_NeoPixel pixels(NUMPIXELS, PIN, NEO_GRB + NEO_KHZ800);
void setup() {
pixels.begin(); // 초기화
}
void loop() {
pixels.clear(); // 모든 LED 끄기
// 첫 번째 LED부터 순서대로 빨간색(255, 0, 0) 켜기
for(int i=0; i<NUMPIXELS; i++) {
pixels.setPixelColor(i, pixels.Color(255, 0, 0));
pixels.show(); // 설정한 색상을 LED에 반영
delay(100);
}
}
64개의 WS2812 LED를 안전하게 구동하려면 아두이노 전원 대신 반드시 별도의 외부 5V 전원(어댑터 또는 SMPS)을 사용해야 합니다.
LED가 모두 흰색(최대 밝기)으로 켜질 때 개당 약 60mA를 소모하므로, 64개 구동 시 5V 4A(또는 최소 3A) 이상의 전원 공급 장치가 필요합니다.
🔌 회로 연결 방법
외부 전원을 사용할 때 가장 중요한 점은 아두이노와 외부 전원의 GND(마이너스)를 하나로 묶어주는 것입니다. GND가 연결되지 않으면 데이터 신호가 전달되지 않아 LED가 오작동합니다.
[ 외부 5V 전원 공급 장치 ]
├── (+) 5V ──────> LED VCC (+)
└── (-) GND ──┬──> LED GND (-)
│
└──> 아두이노 GND
├── (+) 5V ──────> LED VCC (+)
└── (-) GND ──┬──> LED GND (-)
│
└──> 아두이노 GND
[ 아두이노 ]
├── D6 (디지털 핀) ──[ 300~500Ω 저항 ]──> LED DIN (데이터 입력)
└── GND ───────────────────────────────── (위의 외부 전원 GND와 연결)
├── D6 (디지털 핀) ──[ 300~500Ω 저항 ]──> LED DIN (데이터 입력)
└── GND ───────────────────────────────── (위의 외부 전원 GND와 연결)
⚠️ 안전한 구동을 위한 필수 팁
- GND 공통 연결: 아두이노 GND와 외부 전원 GND를 반드시 서로 연결하세요.
- 데이터 선 저항 추가: 아두이노 데이터 핀(예: D6)과 LED DIN 핀 사이에 300Ω ~ 500Ω 저항을 직렬로 연결하면 급격한 전류 변화로부터 첫 번째 LED를 보호할 수 있습니다.
- 대용량 콘덴서 부착: 외부 전원의 (+)와 (-) 출력단 사이에 1000µF, 6.3V(이상) 전해 콘덴서를 병렬로 달아주면 전압 스파이크를 막아 LED 손상을 예방합니다.

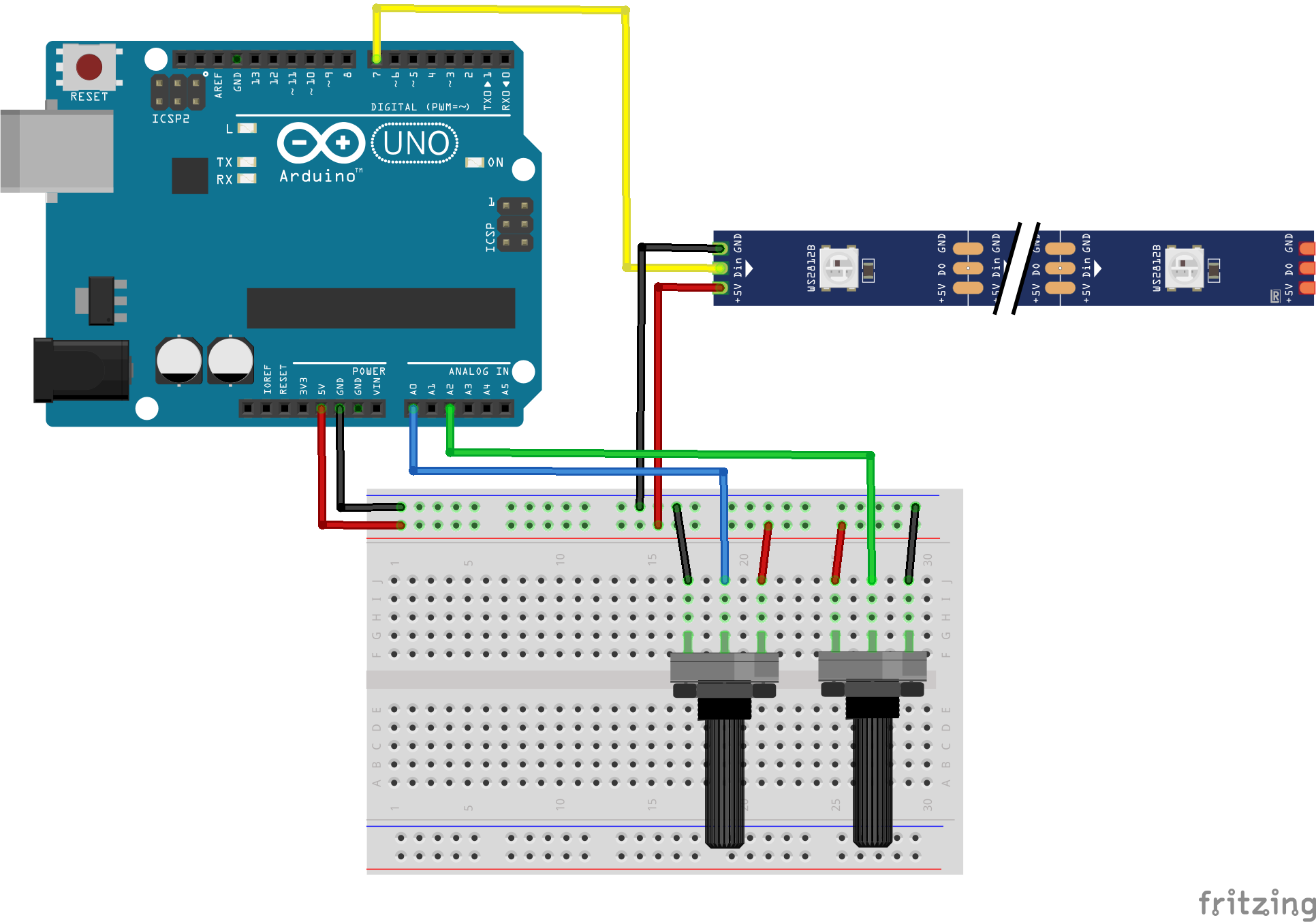

#include "FastLED.h"
#define NUM_LEDS 10 //The amount of LEDs on your ARGB LED Strip that you wish to use
#define DATA_PIN 7 //The Digital Pin on Arduino that connects to the LED Strip's Data Pin (DIN)
int intensityPin = A0;
int speedPin = A2;
int speed;
int intensity;
CRGB leds[NUM_LEDS];
//Set an array length the same as the total LEDs on your strip
//so each LED can be addressed separately in setup/loop
//e.g. leds[0] for the first one, leds[1] for the second one and so on
void setup() {
FastLED.addLeds<WS2812, DATA_PIN>(leds, NUM_LEDS);
//Initialise the LED strip with the correct strip type (e.g. WS2812 is common),
//Arduino Digital Pin and no. of LEDs to use
pinMode(speedPin, INPUT);
pinMode(intensityPin, INPUT);
Serial.begin(9600);
}
void loop() {
red_led();
yellow_led();
green_led();
blue_led();
purple_led();
cyan_led();
white_led();
}
void green_led() {
for (int i = 0; i < NUM_LEDS; i++) {
intensity = map(analogRead(intensityPin),0,1023,0,255);
leds[i] = CRGB(intensity,0,0);
FastLED.show();
speed = map(analogRead(speedPin),0,1023,0,255);
//Serial.println(speed);
Serial.println(intensity);
delay(speed);
FastLED.clear();
}
}
void red_led() {
for (int i = 0; i < NUM_LEDS; i++) {
intensity = map(analogRead(intensityPin),0,1023,0,255);
leds[i] = CRGB(0,intensity,0);
FastLED.show();
speed = map(analogRead(speedPin),0,1023,0,255);
//Serial.println(speed);
Serial.println(intensity);
delay(speed);
FastLED.clear();
}
}
void blue_led() {
for (int i = 0; i < NUM_LEDS; i++) {
intensity = map(analogRead(intensityPin),0,1023,0,255);
leds[i] = CRGB(0,0,intensity);
FastLED.show();
speed = map(analogRead(speedPin),0,1023,0,255);
//Serial.println(speed);
Serial.println(intensity);
delay(speed);
FastLED.clear();
}
}
void yellow_led() {
for (int i = 0; i < NUM_LEDS; i++) {
intensity = map(analogRead(intensityPin),0,1023,0,255);
leds[i] = CRGB(intensity,intensity,0);
FastLED.show();
speed = map(analogRead(speedPin),0,1023,0,255);
//Serial.println(speed);
Serial.println(intensity);
delay(speed);
FastLED.clear();
}
}
void purple_led() {
for (int i = 0; i < NUM_LEDS; i++) {
intensity = map(analogRead(intensityPin),0,1023,0,255);
leds[i] = CRGB(0,intensity,intensity);
FastLED.show();
speed = map(analogRead(speedPin),0,1023,0,255);
//Serial.println(speed);
Serial.println(intensity);
delay(speed);
FastLED.clear();
}
}
void cyan_led() {
for (int i = 0; i < NUM_LEDS; i++) {
intensity = map(analogRead(intensityPin),0,1023,0,255);
leds[i] = CRGB(intensity,0,intensity);
FastLED.show();
speed = map(analogRead(speedPin),0,1023,0,255);
//Serial.println(speed);
Serial.println(intensity);
delay(speed);
FastLED.clear();
}
}
void white_led() {
for (int i = 0; i < NUM_LEDS; i++) {
intensity = map(analogRead(intensityPin),0,1023,0,255);
leds[i] = CRGB(intensity,intensity,intensity);
FastLED.show();
speed = map(analogRead(speedPin),0,1023,0,255);
//Serial.println(speed);
Serial.println(intensity);
delay(speed);
FastLED.clear();
}
}
//======================
//WS2812B RGB LED Strips
//======================
#include <FastLED.h>
//-------------------------
CRGB leds[30];
boolean exitFunction; int numStrips = 0;
//=======================================================

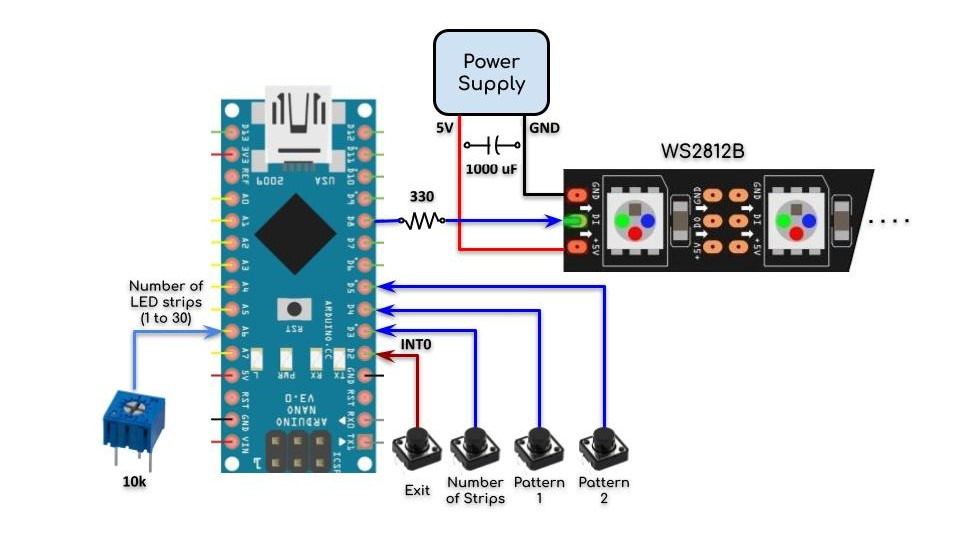

void setup()
{
pinMode(3,INPUT); pinMode(4,INPUT); pinMode(5,INPUT);
FastLED.addLeds<WS2812B, 8, GRB>(leds, 30);
FastLED.setBrightness(50);
attachInterrupt(0,ISR_exit,RISING);
}
//=======================================================
void loop()
{
exitFunction = false;
for(int i=0; i<30; i++)
{
leds[i] = CRGB::Black;
FastLED.show();
}
if(digitalRead(3) == HIGH) numOfStrips();
if(digitalRead(4) == HIGH) pattern1(numStrips);
if(digitalRead(5) == HIGH) pattern2(numStrips);
}
//=======================================================
void numOfStrips()
{
while(1)
{
if(exitFunction == true) return;
numStrips = map(analogRead(A6),0,1023,1,30);
for(int i=0; i<numStrips; i++)
{
leds[i] = CRGB::Red;
FastLED.show();
}
for(int j=numStrips; j<30; j++)
{
leds[j] = CRGB::Black;
FastLED.show();
}
}
}
//=======================================================
void pattern1(int numStrips)
{
while(1)
{
for(int j=1; j<=3; j++)
{
for(int i=0; i<numStrips; i++)
{
if(exitFunction == true) return;
if(j == 1)
{
leds[i] = CRGB::Red; delay(100);
FastLED.show();
}
if(j == 2)
{
leds[i] = CRGB::Blue; delay(100);
FastLED.show();
}
if(j == 3)
{
leds[i] = CRGB::Green; delay(100);
FastLED.show();
}
}
}
}
}
//=======================================================
void pattern2(int numStrips)
{
while(1)
{
for(int i=0; i<numStrips; i++)
{
if(exitFunction == true) return;
leds[i] = CRGB::Red; delay(80);
FastLED.show();
leds[i] = CRGB::Black; delay(80);
FastLED.show();
}
for(int i=numStrips-1; i>=0; i--)
{
if(exitFunction == true) return;
leds[i] = CRGB::Blue; delay(80);
FastLED.show();
leds[i] = CRGB::Black; delay(80);
FastLED.show();
}
}
}
//=======================================================
void ISR_exit()
{
exitFunction = true;
}반응형
