nano 33 IoT에서 타이머 인터럽트 구현 참고 2







소스코드 2개를 참고하세요. 코드를 가져온 곳은 링크를 따라가면 아래 댓글에서 발견할 수 있습니다. 츨처에 있는 상황 설명은 아래와 같습니다.



TC 타이머 29 장용 버전과 SAMD21 핸드북의 TCC 30 장용 버전이 두 개 있습니다.- Markus



29. TC - Timer/Counter



/**
 * @author Markus Bader
 * @brief this program shows how to use the TC timer with interrupts on an Arduino Zero board
 * @email markus.bader@tuwien.ac.at
 */

int pin_ovf_led = 13;  // debug pin for overflow led
int pin_mc0_led = 5;  // debug pin for compare led
unsigned int loop_count = 0;
unsigned int irq_ovf_count = 0;

void setup() {

  pinMode(pin_ovf_led, OUTPUT);   // for debug leds
  digitalWrite(pin_ovf_led, LOW); // for debug leds
  pinMode(pin_mc0_led, OUTPUT);   // for debug leds
  digitalWrite(pin_mc0_led, LOW); // for debug leds


  // Enable clock for TC
  REG_GCLK_CLKCTRL = (uint16_t) (GCLK_CLKCTRL_CLKEN | GCLK_CLKCTRL_GEN_GCLK0 | GCLK_CLKCTRL_ID_TCC2_TC3) ;
  while ( GCLK->STATUS.bit.SYNCBUSY == 1 ); // wait for sync

  // The type cast must fit with the selected timer mode
  TcCount16* TC = (TcCount16*) TC3; // get timer struct

  TC->CTRLA.reg &= ~TC_CTRLA_ENABLE;   // Disable TC
  while (TC->STATUS.bit.SYNCBUSY == 1); // wait for sync

  TC->CTRLA.reg |= TC_CTRLA_MODE_COUNT16;  // Set Timer counter Mode to 16 bits
  while (TC->STATUS.bit.SYNCBUSY == 1); // wait for sync
  TC->CTRLA.reg |= TC_CTRLA_WAVEGEN_NFRQ; // Set TC as normal Normal Frq
  while (TC->STATUS.bit.SYNCBUSY == 1); // wait for sync

  TC->CTRLA.reg |= TC_CTRLA_PRESCALER_DIV256;   // Set perscaler
  while (TC->STATUS.bit.SYNCBUSY == 1); // wait for sync

  // TC->PER.reg = 0xFF;   // Set counter Top using the PER register but the 16/32 bit timer counts allway to max
  // while (TC->STATUS.bit.SYNCBUSY == 1); // wait for sync

  TC->CC[0].reg = 0xFFF;
  while (TC->STATUS.bit.SYNCBUSY == 1); // wait for sync

  // Interrupts
  TC->INTENSET.reg = 0;              // disable all interrupts
  TC->INTENSET.bit.OVF = 1;          // enable overfollow
  TC->INTENSET.bit.MC0 = 1;          // enable compare match to CC0

  // Enable InterruptVector
  NVIC_EnableIRQ(TC3_IRQn);

  // Enable TC
  TC->CTRLA.reg |= TC_CTRLA_ENABLE;
  while (TC->STATUS.bit.SYNCBUSY == 1); // wait for sync

}

void loop() {
  // dummy
  delay(250);
}

void TC3_Handler()
{
  TcCount16* TC = (TcCount16*) TC3; // get timer struct
  if (TC->INTFLAG.bit.OVF == 1) {  // A overflow caused the interrupt
    digitalWrite(pin_ovf_led, irq_ovf_count % 2); // for debug leds
    digitalWrite(pin_mc0_led, HIGH); // for debug leds
    TC->INTFLAG.bit.OVF = 1;    // writing a one clears the flag ovf flag
    irq_ovf_count++;                 // for debug leds
  }

  if (TC->INTFLAG.bit.MC0 == 1) {  // A compare to cc0 caused the interrupt
    digitalWrite(pin_mc0_led, LOW);  // for debug leds
    TC->INTFLAG.bit.MC0 = 1;    // writing a one clears the flag ovf flag
  }
}





30. TCC - Timer/Counter for Control Applications





/**
 * @author Markus Bader
 * @brief this program shows how to use the TCC timer with interrupts on an Arduino Zero board
 * @email markus.bader@tuwien.ac.at
 */

int pin_ovf_led = 13; // debug pin for overflow led
int pin_mc0_led = 5;  // debug pin for compare led
unsigned int loop_count = 0;
unsigned int irq_ovf_count = 0;

void setup() {

  pinMode(pin_ovf_led, OUTPUT);   // for debug leds
  digitalWrite(pin_ovf_led, LOW); // for debug leds
  pinMode(pin_mc0_led, OUTPUT);   // for debug leds
  digitalWrite(pin_mc0_led, LOW); // for debug leds


  // Enable clock for TC
  REG_GCLK_CLKCTRL = (uint16_t) (GCLK_CLKCTRL_CLKEN | GCLK_CLKCTRL_GEN_GCLK0 | GCLK_CLKCTRL_ID_TCC0_TCC1) ;
  while ( GCLK->STATUS.bit.SYNCBUSY == 1 ); // wait for sync


  // The type cast must fit with the selected timer
  Tcc* TC = (Tcc*) TCC0; // get timer struct

  TC->CTRLA.reg &= ~TCC_CTRLA_ENABLE;   // Disable TC
  while (TC->SYNCBUSY.bit.ENABLE == 1); // wait for sync


  TC->CTRLA.reg |= TCC_CTRLA_PRESCALER_DIV256;   // Set perscaler


  TC->WAVE.reg |= TCC_WAVE_WAVEGEN_NFRQ;   // Set wave form configuration
  while (TC->SYNCBUSY.bit.WAVE == 1); // wait for sync

  TC->PER.reg = 0xFFFF;              // Set counter Top using the PER register
  while (TC->SYNCBUSY.bit.PER == 1); // wait for sync

  TC->CC[0].reg = 0xFFF;
  while (TC->SYNCBUSY.bit.CC0 == 1); // wait for sync

  // Interrupts
  TC->INTENSET.reg = 0;                 // disable all interrupts
  TC->INTENSET.bit.OVF = 1;          // enable overfollow
  TC->INTENSET.bit.MC0 = 1;          // enable compare match to CC0

  // Enable InterruptVector
  NVIC_EnableIRQ(TCC0_IRQn);

  // Enable TC
  TC->CTRLA.reg |= TCC_CTRLA_ENABLE ;
  while (TC->SYNCBUSY.bit.ENABLE == 1); // wait for sync

}

void loop() {
  // dummy
  delay(250);
}

void TCC0_Handler()
{
  Tcc* TC = (Tcc*) TCC0;       // get timer struct
  if (TC->INTFLAG.bit.OVF == 1) {  // A overflow caused the interrupt
    digitalWrite(pin_ovf_led, irq_ovf_count % 2); // for debug leds
    digitalWrite(pin_mc0_led, HIGH); // for debug leds
    TC->INTFLAG.bit.OVF = 1;    // writing a one clears the flag ovf flag
    irq_ovf_count++;                 // for debug leds
  }

  if (TC->INTFLAG.bit.MC0 == 1) {  // A compare to cc0 caused the interrupt
    digitalWrite(pin_mc0_led, LOW);  // for debug leds
    TC->INTFLAG.bit.MC0 = 1;    // writing a one clears the flag ovf flag
  }
}

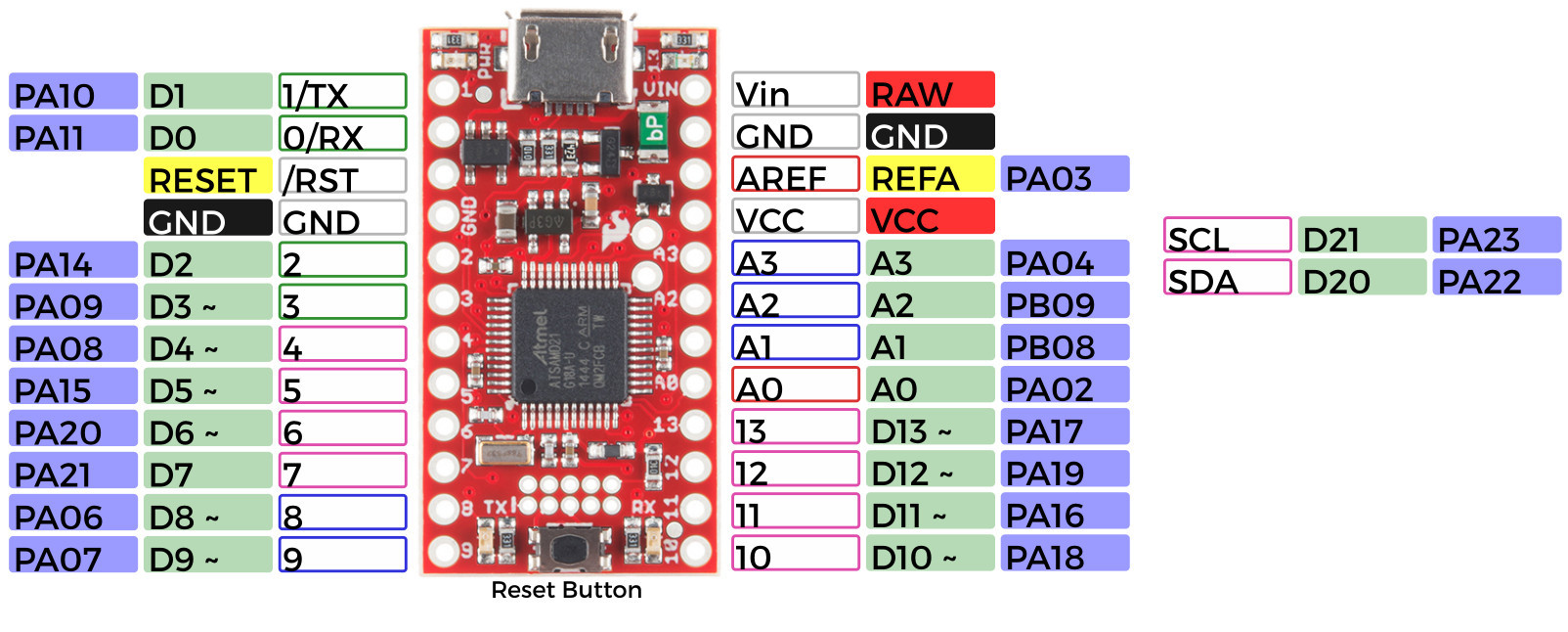

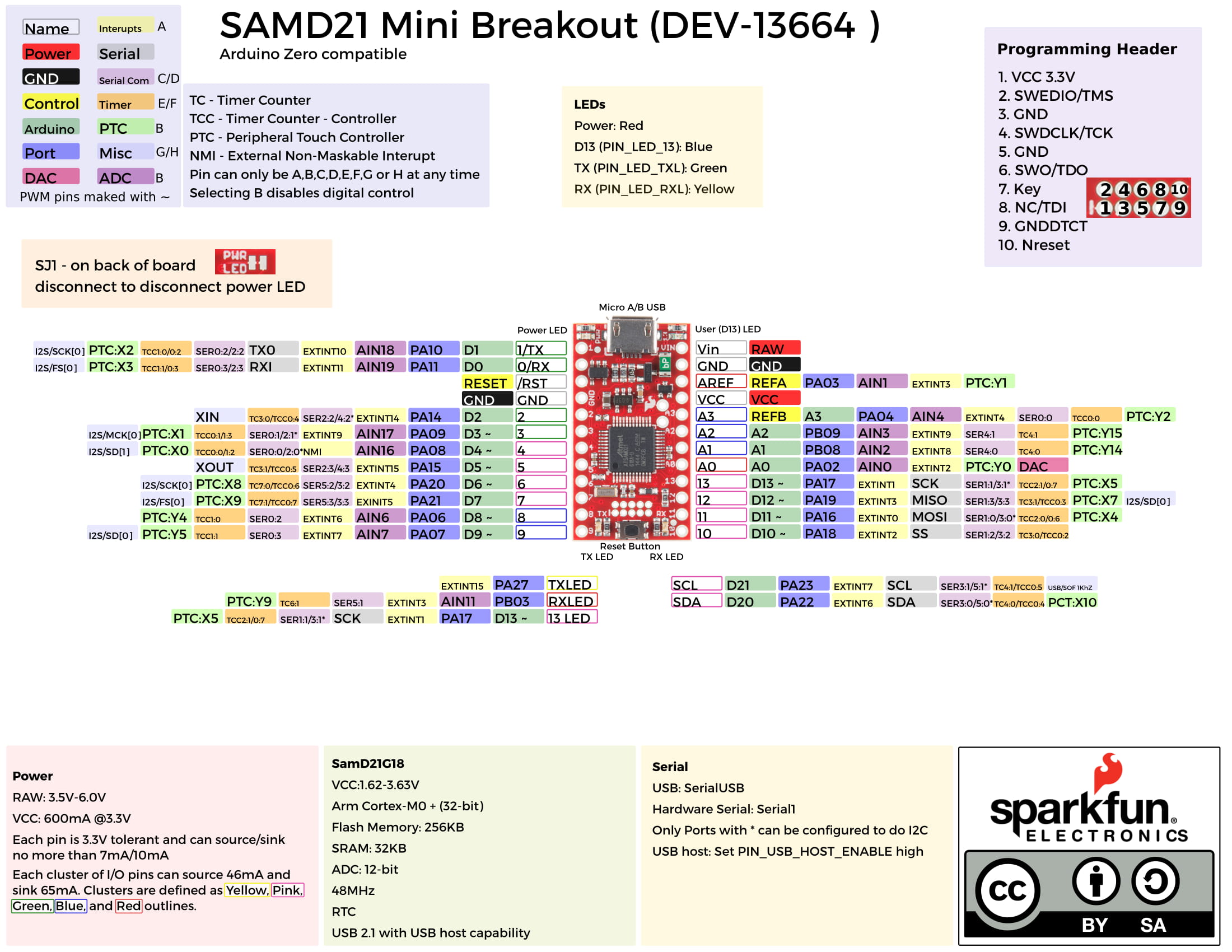

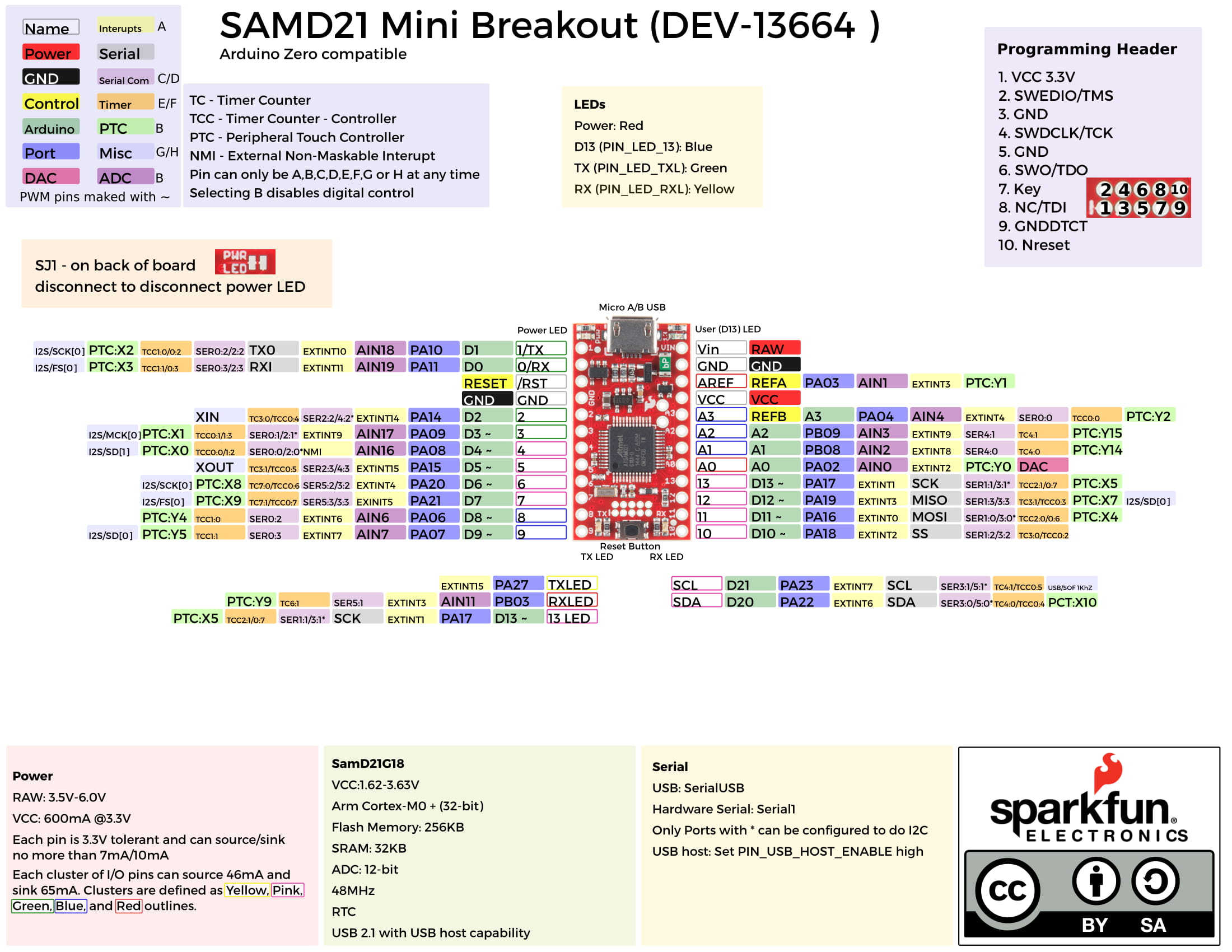

SAMD21 Mini/Dev Breakout Hookup Guide https://learn.sparkfun.com/tutorials/samd21-minidev-breakout-hookup-guide/all





아래 이미지 pdf 파일

graphicalDatasheet-Mini.pdf

0.72MB





SAMD21 Mini/Dev Breakout Hookup Guide https://learn.sparkfun.com/tutorials/samd21-minidev-breakout-hookup-guide/all
