HTTP를 통해 Arduino Nano 33 IoT와 Ubidots 데이터 보내기 3 Oled에 데이터 표시하기







관련 포스팅을 참고하세요.



HTTP를 통해 Arduino Nano 33 IoT와 Ubidots 연결 1

HTTP를 통해 Arduino Nano 33 IoT와 Ubidots 데이터 보내기 2

HTTP를 통해 Arduino Nano 33 IoT와 Ubidots 데이터 보내기 3 Oled에 데이터 표시하기











코드





/********************************
 * Libraries included
 *******************************/

#include <SPI.h>
#include <WiFiNINA.h>
#include <avr/dtostrf.h>
#include <SimpleDHT.h>

#include <Wire.h>              // include Arduino wire library (required for I2C devices)
#include <Adafruit_GFX.h>      // include Adafruit graphics library
#include <Adafruit_SSD1306.h>  // include Adafruit SSD1306 OLED display driver
#define OLED_RESET  4    // define display reset pin
Adafruit_SSD1306 display(OLED_RESET);

/********************************
 * Constants and objects
 *******************************/

#define DEVICE_LABEL "arduino-nano-33"
#define TOKEN "USER TOKEN"

//define DHT11 pin connection
int pinDHT11 = 9;
SimpleDHT11 dht11;

String tempVarId = "5f9943df1d847246587273cc";
String humVarId = "5f995f571d847213c58177d3";

char const * VARIABLE_LABEL_1 = "humidity_forcm";
char const * VARIABLE_LABEL_2 = "temparature_forcm";
char const *SERVER="things.ubidots.com";
//char const *SERVER="industrial.api.ubidots.com";
//Replace the above line if you are an Educational user char const *SERVER="things.ubidots.com";

const int HTTPPORT= 443;
char const *AGENT="Arduino Nano 33 IoT";
char const *HTTP_VERSION = " HTTP/1.1\r\n";
char const *VERSION ="1.0";
char const *PATH= "/api/v1.6/devices/";


//char const * SSID_NAME = "PISnet_032AC8"; // Put here your SSID name
//char const * SSID_PASS = "82988298"; // Put here your password

//#define SECRET_SSID "PISnet_032AC8"
//#define SECRET_PASS "82988298"

char const * SSID_NAME = "SK_WiFiGIGAA988"; // Put here your SSID name
char const * SSID_PASS = "1806026356"; // Put here your password

//char const * SSID_NAME = "FORCM"; // Put here your SSID name
//char const * SSID_PASS = "16610350"; // Put here your password

//#define SECRET_SSID "SK_WiFiGIGAA988"
//#define SECRET_PASS "1806026356"


int status = WL_IDLE_STATUS;

WiFiSSLClient client;

/********************************
 * Auxiliar Functions
 *******************************/

void printWiFiStatus() {
  // print the SSID of the network you're attached to:
  Serial.print("SSID: ");
  Serial.println(WiFi.SSID());
  // print your board's IP address:
  IPAddress ip = WiFi.localIP();
  Serial.print("IP Address: ");
  Serial.println(ip);
  // print the received signal strength:
  long rssi = WiFi.RSSI();
  Serial.print("signal strength (RSSI):");
  Serial.print(rssi);
  Serial.println(" dBm");
}

void getResponseServer() {
  Serial.println(F("\nUbidots' Server response:\n"));
  while (client.available()) {
    char c = client.read();
    Serial.print(c); // Uncomment this line to visualize the response on the Serial Monitor
  }
}

void waitServer() {
  int timeout = 0;
  while (!client.available() && timeout < 5000) {
    timeout++;
    delay(1);
    if (timeout >= 5000) {
      Serial.println(F("Error, max timeout reached"));
      break;
    }
  }
}

void sendData(char* payload) {
  int contentLength = strlen(payload);

  /* Connecting the client */
  if (client.connect(SERVER, HTTPPORT)) {
    Serial.println("connected to server");

    client.print(F("POST "));
    client.print(PATH);
    client.print(DEVICE_LABEL);
    client.print(F("/"));
    client.print(HTTP_VERSION);
    client.print(F("Host: "));
    client.print(SERVER);
    client.print(F("\r\n"));
    client.print(F("User-Agent: "));
    client.print(AGENT);
    client.print(F("\r\n"));
    client.print(F("X-Auth-Token: "));
    client.print(TOKEN);
    client.print(F("\r\n"));
    client.print(F("Connection: close\r\n"));
    client.print(F("Content-Type: application/json\r\n"));
    client.print(F("Content-Length: "));
    client.print(contentLength);
    client.print(F("\r\n\r\n"));
    client.print(payload);
    client.print(F("\r\n"));

    Serial.print(F("POST "));
    Serial.print(PATH);
    Serial.print(DEVICE_LABEL);
    Serial.print(F("/"));
    Serial.print(HTTP_VERSION);
    Serial.print(F("Host: "));
    Serial.print(SERVER);
    Serial.print(F("\r\n"));
    Serial.print(F("User-Agent: "));
    Serial.print(AGENT);
    Serial.print(F("\r\n"));
    Serial.print(F("X-Auth-Token: "));
    Serial.print(TOKEN);
    Serial.print(F("\r\n"));
    Serial.print(F("Connection: close\r\n"));
    Serial.print(F("Content-Type: application/json\r\n"));
    Serial.print(F("Content-Length: "));
    Serial.print(contentLength);
    Serial.print(F("\r\n\r\n"));
    Serial.print(payload);
    Serial.print(F("\r\n"));

    waitServer();
    getResponseServer();
  }

    /* Disconnecting the client */
  client.stop();
}

void initial_oled()
{
    //initialize the SSD1306 OLED display with I2C address = 0x3D
  display.begin(SSD1306_SWITCHCAPVCC, 0x3C);

  // clear the display buffer.
  display.clearDisplay();

  display.setTextSize(1);   // text size = 1
  display.setTextColor(WHITE, BLACK);  // set text color to white and black background
  display.setCursor(15, 0);            // move cursor to position (15, 0) pixel
  display.print("Device Status");
  display.display();        // update the display
  display.setTextSize(2);   // text size = 2
}

/********************************
 * Main Functions
 *******************************/

void setup() {
  //Initialize serial and wait for port to open:
  Serial.begin(9600);

  while (!Serial) {
    ; // wait for serial port to connect. Needed for native USB port only

  initial_oled();
}

  // check for the WiFi module:
  if (WiFi.status() == WL_NO_MODULE) {
    Serial.println("Communication with WiFi module failed!");
    // don't continue
    while (true);
  }

  // attempt to connect to WiFi network:
  while (status != WL_CONNECTED) {
    Serial.print("Attempting to connect to SSID: ");
    Serial.println(SSID_NAME);
    // Connect to WPA/WPA2 network. Change this line if using open or WEP network:
    status = WiFi.begin(SSID_NAME, SSID_PASS);
    // wait 10 seconds for connection:
    delay(10000);
  }
  Serial.println("Connected to wifi");
  printWiFiStatus();
}

void loop(){

  char payload[200];
  char str_val_1[30];
  char str_val_2[30];

  float value;

  to_oled_temphumidata();

  /*4 is the total lenght of number,maximun number accepted is 99.99*/
  value = analogRead(A0);
  dtostrf(get_humi(), 4, 2, str_val_1);
  sprintf(payload, "%s","");
  sprintf(payload, "{\"");
  sprintf(payload, "%s%s\":%s", payload, VARIABLE_LABEL_1, str_val_1);
  //sprintf(payload, "%s}", payload);

  value = analogRead(A1);
  dtostrf(get_temp(), 4, 2, str_val_2);
  sprintf(payload, "%s,",payload);
  //sprintf(payload, "%s{\"", payload);
  sprintf(payload, "%s\"""%s\":%s", payload, VARIABLE_LABEL_2, str_val_2);
  sprintf(payload, "%s}", payload);

  Serial.println(payload);

  //Send the payload to Ubidots
  sendData(payload);
  delay(60000);
}

char _buffer[8];

void to_oled_temphumidata()
{
  byte temperature = 0;
  byte humidity = 0;

  if (dht11.read(pinDHT11, &temperature, &humidity, NULL)) {
    Serial.print("Read DHT11 failed.");
    return;
  }

  display.setCursor(23, 10);
  sprintf(_buffer, "%d C", (int)temperature);
  display.print(_buffer);

  display.setCursor(23, 30);
  sprintf(_buffer, "%d ", (int)humidity);
  display.print(_buffer);

  display.setCursor(60, 30);
  sprintf(_buffer, "/", (int)humidity);
  display.print(_buffer);

  display.setCursor(23, 50);

  display.print(_buffer);

  display.drawCircle(54, 12, 2, WHITE);
  display.drawCircle(60, 32, 2, WHITE);
  display.drawCircle(70, 42, 2, WHITE);

  // update the display
  display.display();

  // DHT11 sampling rate is 1HZ.
  delay(2000);
}

int get_temp()
{
  delay(2000);
  byte temperature = 0;
  byte humidity = 0;

  if (dht11.read(pinDHT11, &temperature, &humidity, NULL)) {
    Serial.print("Read DHT11 temp failed.");
    return 0;
  }
  else{
    return (int)temperature;
  }
}

int get_humi()
{
  delay(2000);
  byte temperature = 0;
  byte humidity = 0;

  if (dht11.read(pinDHT11, &temperature, &humidity, NULL)) {
    Serial.print("Read DHT11 humi failed.");
    return 0;
  }else{
    return (int)humidity;
  }
}

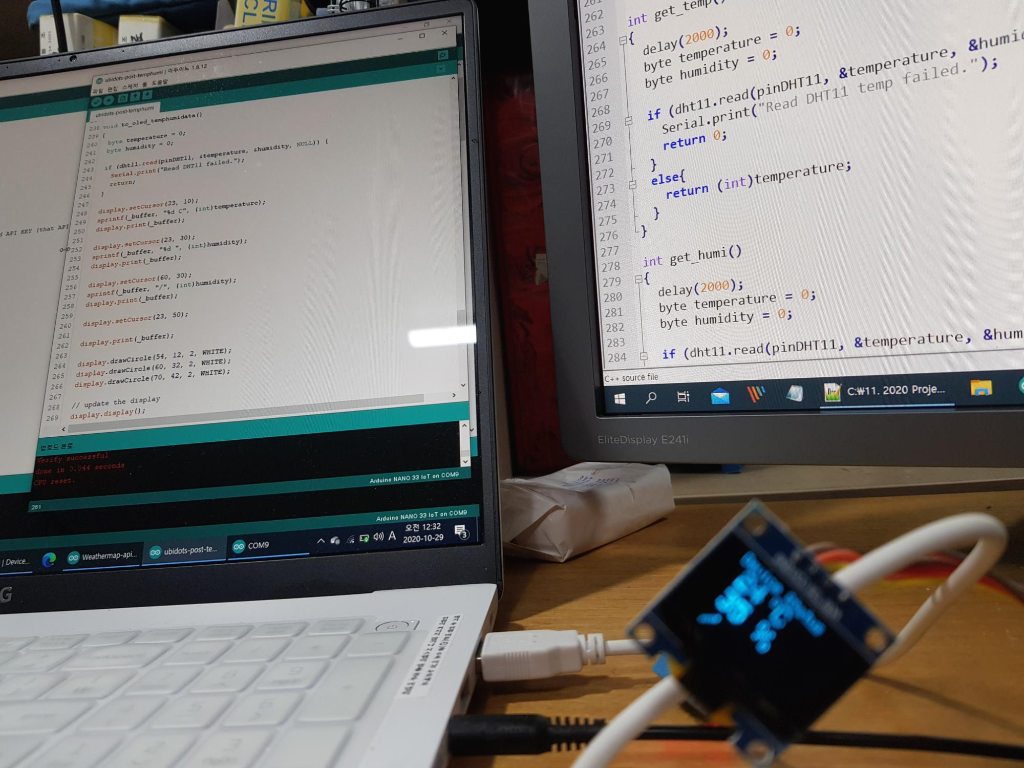

데이터 OLED에 표시하고 Ubidots 에 전송
