ESP32 기반 컬러 LCD 인터넷 시계
이 프로젝트에는 두 가지 주요 구성 요소만 필요합니다.

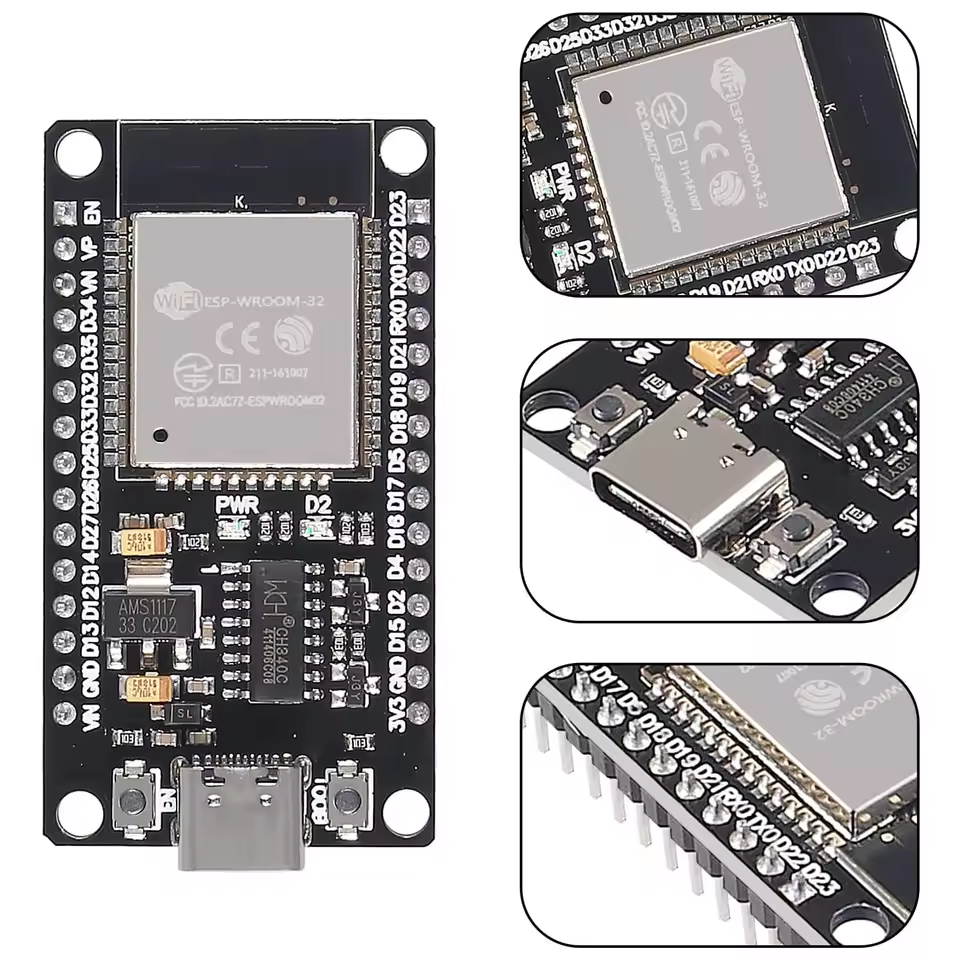

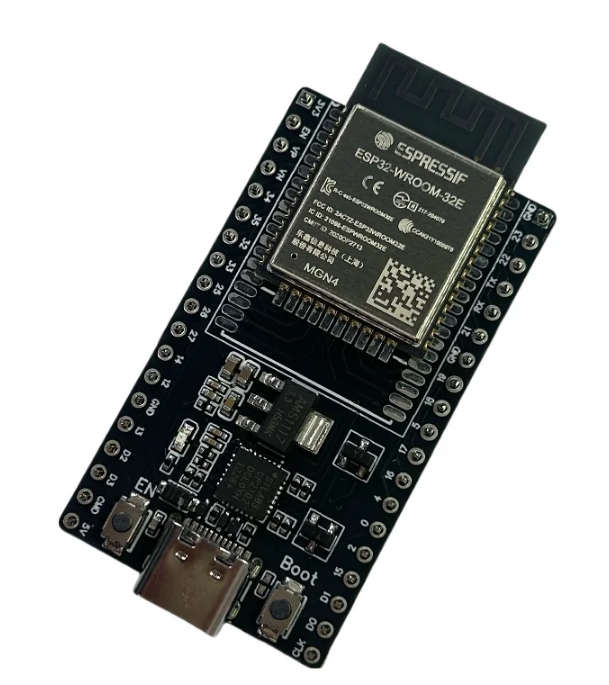

1. ESP32 개발 보드

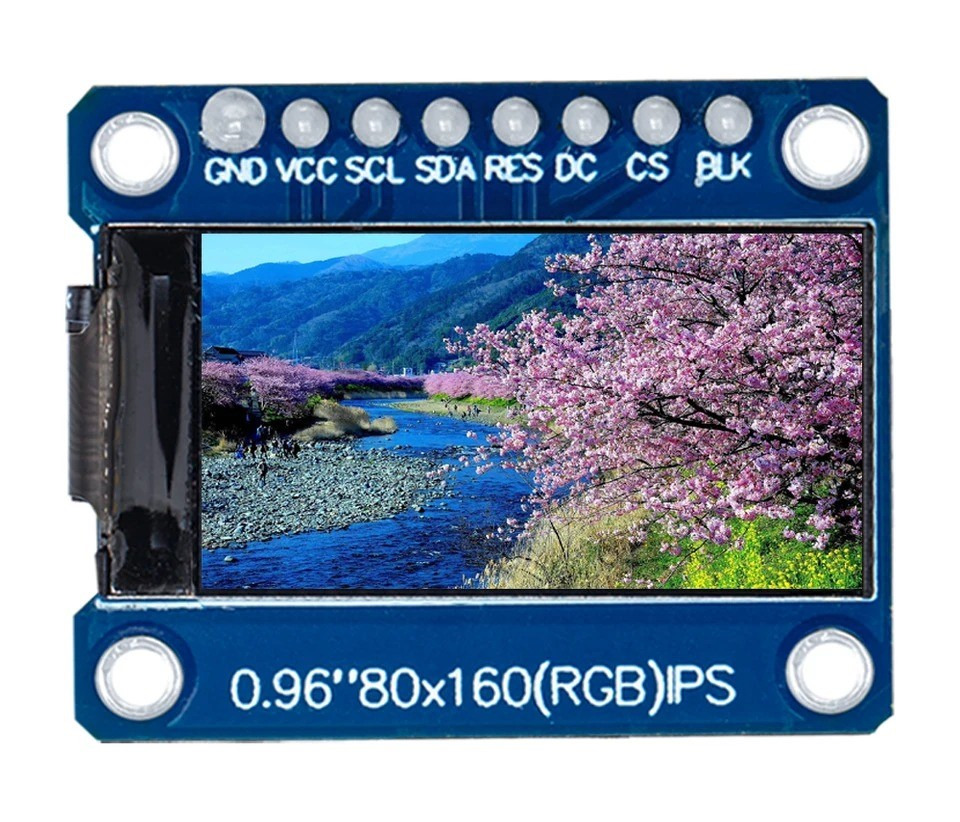

2. 0.96인치 컬러 TFT 디스플레이 (80x160)
사양 세부
크기 0.96인치
해결 80x160 픽셀
드라이버 IC ST7735
인터페이스 SPI
작동 전압 3.3V

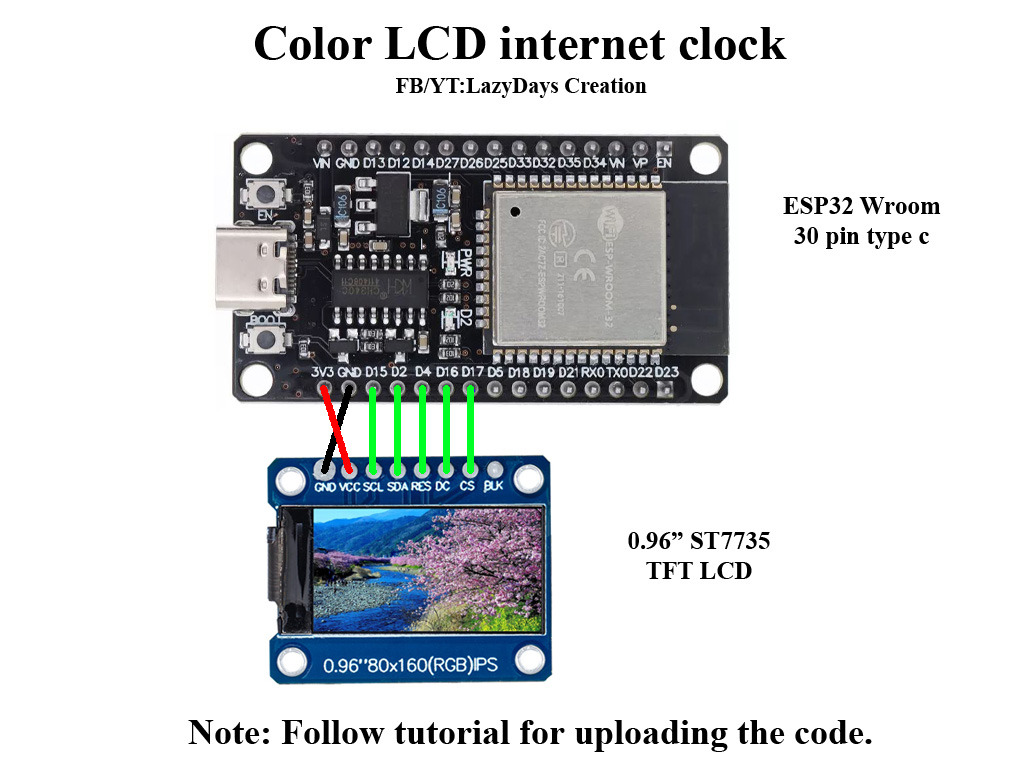

회로도
Code - 7seg20.h
// Created by http://oleddisplay.squix.ch/ Consider a donation
// In case of problems make sure that you are using the font file with the correct version!
const uint8_t DSEG7_Classic_Bold_30Bitmaps[] PROGMEM = {
// Bitmap Data:
0x00, // ' '
0x00, // '!'
0xFF,0x40,0xA0,0x50,0x28,0x14,0x0A,0x05,0x02,0x81,0x40,0xA0,0x50,0x28,0x14,0x0A,0x05,0x02,0x81,0x40,0xA0,0x5F,0xE0, // '"'
0xFF,0x40,0xA0,0x50,0x28,0x14,0x0A,0x05,0x02,0x81,0x40,0xA0,0x50,0x28,0x14,0x0A,0x05,0x02,0x81,0x40,0xA0,0x5F,0xE0, // '#'
0xFF,0x40,0xA0,0x50,0x28,0x14,0x0A,0x05,0x02,0x81,0x40,0xA0,0x50,0x28,0x14,0x0A,0x05,0x02,0x81,0x40,0xA0,0x5F,0xE0, // '$'
0xFF,0x40,0xA0,0x50,0x28,0x14,0x0A,0x05,0x02,0x81,0x40,0xA0,0x50,0x28,0x14,0x0A,0x05,0x02,0x81,0x40,0xA0,0x5F,0xE0, // '%'
0xFF,0x40,0xA0,0x50,0x28,0x14,0x0A,0x05,0x02,0x81,0x40,0xA0,0x50,0x28,0x14,0x0A,0x05,0x02,0x81,0x40,0xA0,0x5F,0xE0, // '&'
0xFF,0x40,0xA0,0x50,0x28,0x14,0x0A,0x05,0x02,0x81,0x40,0xA0,0x50,0x28,0x14,0x0A,0x05,0x02,0x81,0x40,0xA0,0x5F,0xE0, // '''
0xFF,0x40,0xA0,0x50,0x28,0x14,0x0A,0x05,0x02,0x81,0x40,0xA0,0x50,0x28,0x14,0x0A,0x05,0x02,0x81,0x40,0xA0,0x5F,0xE0, // '('
0xFF,0x40,0xA0,0x50,0x28,0x14,0x0A,0x05,0x02,0x81,0x40,0xA0,0x50,0x28,0x14,0x0A,0x05,0x02,0x81,0x40,0xA0,0x5F,0xE0, // ')'
0xFF,0x40,0xA0,0x50,0x28,0x14,0x0A,0x05,0x02,0x81,0x40,0xA0,0x50,0x28,0x14,0x0A,0x05,0x02,0x81,0x40,0xA0,0x5F,0xE0, // '*'
0xFF,0x40,0xA0,0x50,0x28,0x14,0x0A,0x05,0x02,0x81,0x40,0xA0,0x50,0x28,0x14,0x0A,0x05,0x02,0x81,0x40,0xA0,0x5F,0xE0, // '+'
0xFF,0x40,0xA0,0x50,0x28,0x14,0x0A,0x05,0x02,0x81,0x40,0xA0,0x50,0x28,0x14,0x0A,0x05,0x02,0x81,0x40,0xA0,0x5F,0xE0, // ','
0x3F,0xF8,0xFF,0xF9,0xFF,0xF1,0xFF,0xC0, // '-'
0x67,0xBC,0xC0, // '.'
0xFF,0x40,0xA0,0x50,0x28,0x14,0x0A,0x05,0x02,0x81,0x40,0xA0,0x50,0x28,0x14,0x0A,0x05,0x02,0x81,0x40,0xA0,0x5F,0xE0, // '/'
0x3F,0xFF,0x83,0xFF,0xFC,0xDF,0xFF,0xEE,0xFF,0xFE,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEE,0x00,0x0E,0xC0,0x00,0x6C,0x00,0x06,0xE0,0x00,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xEF,0xFF,0xED,0xFF,0xFE,0x3F,0xFF,0xC3,0xFF,0xF8, // '0'
0x23,0xBD,0xEF,0x7B,0xDE,0xF7,0xBD,0xE7,0x18,0xCE,0xF7,0xBD,0xEF,0x7B,0xDE,0xF7,0x9C,0x40, // '1'
0x3F,0xFF,0x83,0xFF,0xFC,0x1F,0xFF,0xE0,0xFF,0xFE,0x00,0x01,0xE0,0x00,0x1E,0x00,0x01,0xE0,0x00,0x1E,0x00,0x01,0xE0,0x00,0x1E,0x00,0x01,0xE0,0x00,0x1E,0x00,0x01,0xE0,0xFF,0xEE,0x1F,0xFF,0x6D,0xFF,0xF0,0xEF,0xFE,0x0F,0x00,0x00,0xF0,0x00,0x0F,0x00,0x00,0xF0,0x00,0x0F,0x00,0x00,0xF0,0x00,0x0F,0x00,0x00,0xF0,0x00,0x0F,0x00,0x00,0xEF,0xFE,0x0D,0xFF,0xF0,0x3F,0xFF,0x83,0xFF,0xF8, // '2'
0x7F,0xFF,0x0F,0xFF,0xF0,0xFF,0xFF,0x0F,0xFF,0xE0,0x00,0x3C,0x00,0x07,0x80,0x00,0xF0,0x00,0x1E,0x00,0x03,0xC0,0x00,0x78,0x00,0x0F,0x00,0x01,0xE0,0x00,0x3C,0x3F,0xFB,0x8F,0xFF,0xB1,0xFF,0xF6,0x1F,0xFD,0xC0,0x00,0x78,0x00,0x0F,0x00,0x01,0xE0,0x00,0x3C,0x00,0x07,0x80,0x00,0xF0,0x00,0x1E,0x00,0x03,0xC0,0x00,0x78,0x7F,0xFF,0x1F,0xFF,0xE7,0xFF,0xF8,0xFF,0xFE,0x00, // '3'
0x00,0x00,0x4C,0x00,0x0E,0xE0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xEF,0xFE,0xED,0xFF,0xF6,0x1F,0xFF,0x60,0xFF,0xEE,0x00,0x01,0xE0,0x00,0x1E,0x00,0x01,0xE0,0x00,0x1E,0x00,0x01,0xE0,0x00,0x1E,0x00,0x01,0xE0,0x00,0x1E,0x00,0x01,0xE0,0x00,0x1E,0x00,0x00,0xE0,0x00,0x04, // '4'
0x3F,0xFF,0x83,0xFF,0xF8,0xDF,0xFF,0x0E,0xFF,0xE0,0xF0,0x00,0x0F,0x00,0x00,0xF0,0x00,0x0F,0x00,0x00,0xF0,0x00,0x0F,0x00,0x00,0xF0,0x00,0x0F,0x00,0x00,0xF0,0x00,0x0E,0xFF,0xE0,0xDF,0xFF,0x01,0xFF,0xF6,0x0F,0xFE,0xE0,0x00,0x1E,0x00,0x01,0xE0,0x00,0x1E,0x00,0x01,0xE0,0x00,0x1E,0x00,0x01,0xE0,0x00,0x1E,0x00,0x01,0xE0,0x00,0x1E,0x0F,0xFF,0xE1,0xFF,0xFE,0x3F,0xFF,0xC3,0xFF,0xF8, // '5'
0x3F,0xFF,0x83,0xFF,0xF8,0xDF,0xFF,0x0E,0xFF,0xE0,0xF0,0x00,0x0F,0x00,0x00,0xF0,0x00,0x0F,0x00,0x00,0xF0,0x00,0x0F,0x00,0x00,0xF0,0x00,0x0F,0x00,0x00,0xF0,0x00,0x0E,0xFF,0xE0,0xDF,0xFF,0x0D,0xFF,0xF6,0xEF,0xFE,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xEF,0xFF,0xED,0xFF,0xFE,0x3F,0xFF,0xC3,0xFF,0xF8, // '6'
0x3F,0xFF,0x83,0xFF,0xFC,0xDF,0xFF,0xEE,0xFF,0xFE,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEE,0x00,0x0E,0xC0,0x00,0x60,0x00,0x06,0x00,0x00,0xE0,0x00,0x1E,0x00,0x01,0xE0,0x00,0x1E,0x00,0x01,0xE0,0x00,0x1E,0x00,0x01,0xE0,0x00,0x1E,0x00,0x01,0xE0,0x00,0x1E,0x00,0x01,0xE0,0x00,0x0E,0x00,0x00,0x40, // '7'
0x3F,0xFF,0x83,0xFF,0xFC,0xDF,0xFF,0xEE,0xFF,0xFE,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEE,0xFF,0xEE,0xDF,0xFF,0x6D,0xFF,0xF6,0xEF,0xFE,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xEF,0xFF,0xED,0xFF,0xFE,0x3F,0xFF,0xC3,0xFF,0xF8, // '8'
0x3F,0xFF,0x83,0xFF,0xFC,0xDF,0xFF,0xEE,0xFF,0xFE,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEE,0xFF,0xEE,0xDF,0xFF,0x61,0xFF,0xF6,0x0F,0xFE,0xE0,0x00,0x1E,0x00,0x01,0xE0,0x00,0x1E,0x00,0x01,0xE0,0x00,0x1E,0x00,0x01,0xE0,0x00,0x1E,0x00,0x01,0xE0,0x00,0x1E,0x0F,0xFF,0xE1,0xFF,0xFE,0x3F,0xFF,0xC3,0xFF,0xF8, // '9'
0x67,0xBC,0xC0,0x00,0x00,0x00,0x00,0x00,0x73,0xDE, // ':'
0xFF,0x40,0xA0,0x50,0x28,0x14,0x0A,0x05,0x02,0x81,0x40,0xA0,0x50,0x28,0x14,0x0A,0x05,0x02,0x81,0x40,0xA0,0x5F,0xE0, // ';'
0xFF,0x40,0xA0,0x50,0x28,0x14,0x0A,0x05,0x02,0x81,0x40,0xA0,0x50,0x28,0x14,0x0A,0x05,0x02,0x81,0x40,0xA0,0x5F,0xE0, // '<'
0xFF,0x40,0xA0,0x50,0x28,0x14,0x0A,0x05,0x02,0x81,0x40,0xA0,0x50,0x28,0x14,0x0A,0x05,0x02,0x81,0x40,0xA0,0x5F,0xE0, // '='
0xFF,0x40,0xA0,0x50,0x28,0x14,0x0A,0x05,0x02,0x81,0x40,0xA0,0x50,0x28,0x14,0x0A,0x05,0x02,0x81,0x40,0xA0,0x5F,0xE0, // '>'
0xFF,0x40,0xA0,0x50,0x28,0x14,0x0A,0x05,0x02,0x81,0x40,0xA0,0x50,0x28,0x14,0x0A,0x05,0x02,0x81,0x40,0xA0,0x5F,0xE0, // '?'
0xFF,0x40,0xA0,0x50,0x28,0x14,0x0A,0x05,0x02,0x81,0x40,0xA0,0x50,0x28,0x14,0x0A,0x05,0x02,0x81,0x40,0xA0,0x5F,0xE0, // '@'
0x3F,0xFF,0x83,0xFF,0xFC,0xDF,0xFF,0xEE,0xFF,0xFE,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEE,0xFF,0xEE,0xDF,0xFF,0x6D,0xFF,0xF6,0xEF,0xFE,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xE0,0x01,0xEC,0x00,0x0E,0x00,0x00,0x40, // 'A'
0x00,0x00,0x0C,0x00,0x00,0xE0,0x00,0x0F,0x00,0x00,0xF0,0x00,0x0F,0x00,0x00,0xF0,0x00,0x0F,0x00,0x00,0xF0,0x00,0x0F,0x00,0x00,0xF0,0x00,0x0F,0x00,0x00,0xEF,0xFE,0x0D,0xFF,0xF0,0xDF,0xFF,0x6E,0xFF,0xEE,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEE,0xFF,0xFE,0xDF,0xFF,0xE3,0xFF,0xFC,0x3F,0xFF,0x80, // 'B'
0x0F,0xFE,0x07,0xFF,0xCD,0xFF,0xF3,0xBF,0xF8,0xF0,0x00,0x3C,0x00,0x0F,0x00,0x03,0xC0,0x00,0xF0,0x00,0x3C,0x00,0x0F,0x00,0x03,0xC0,0x00,0xF0,0x00,0x3B,0xFF,0x8D,0xFF,0xF0,0xFF,0xFE,0x3F,0xFF,0x80, // 'C'
0x00,0x00,0x40,0x00,0x0E,0x00,0x01,0xE0,0x00,0x1E,0x00,0x01,0xE0,0x00,0x1E,0x00,0x01,0xE0,0x00,0x1E,0x00,0x01,0xE0,0x00,0x1E,0x00,0x01,0xE0,0x00,0x1E,0x0F,0xFE,0xE1,0xFF,0xF6,0xDF,0xFF,0x6E,0xFF,0xEE,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEE,0xFF,0xFE,0xDF,0xFF,0xE3,0xFF,0xFC,0x3F,0xFF,0x80, // 'D'
0x3F,0xFF,0x8F,0xFF,0xED,0xFF,0xF3,0xBF,0xF8,0xF0,0x00,0x3C,0x00,0x0F,0x00,0x03,0xC0,0x00,0xF0,0x00,0x3C,0x00,0x0F,0x00,0x03,0xC0,0x00,0xF0,0x00,0x3B,0xFF,0x8D,0xFF,0xF3,0x7F,0xFC,0xEF,0xFE,0x3C,0x00,0x0F,0x00,0x03,0xC0,0x00,0xF0,0x00,0x3C,0x00,0x0F,0x00,0x03,0xC0,0x00,0xF0,0x00,0x3C,0x00,0x0E,0xFF,0xE3,0x7F,0xFC,0x3F,0xFF,0x8F,0xFF,0xE0, // 'E'
0x3F,0xFF,0x8F,0xFF,0xED,0xFF,0xF3,0xBF,0xF8,0xF0,0x00,0x3C,0x00,0x0F,0x00,0x03,0xC0,0x00,0xF0,0x00,0x3C,0x00,0x0F,0x00,0x03,0xC0,0x00,0xF0,0x00,0x3B,0xFF,0x8D,0xFF,0xF3,0x7F,0xFC,0xEF,0xFE,0x3C,0x00,0x0F,0x00,0x03,0xC0,0x00,0xF0,0x00,0x3C,0x00,0x0F,0x00,0x03,0xC0,0x00,0xF0,0x00,0x3C,0x00,0x0E,0x00,0x03,0x00,0x00,0x00,0x00,0x00, // 'F'
0x3F,0xFF,0x83,0xFF,0xF8,0xDF,0xFF,0x0E,0xFF,0xE0,0xF0,0x00,0x0F,0x00,0x00,0xF0,0x00,0x0F,0x00,0x00,0xF0,0x00,0x0F,0x00,0x00,0xF0,0x00,0x0F,0x00,0x00,0xF0,0x00,0x0E,0x00,0x00,0xC0,0x00,0x0C,0x00,0x06,0xE0,0x00,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xEF,0xFF,0xED,0xFF,0xFE,0x3F,0xFF,0xC3,0xFF,0xF8, // 'G'
0x00,0x00,0x0C,0x00,0x00,0xE0,0x00,0x0F,0x00,0x00,0xF0,0x00,0x0F,0x00,0x00,0xF0,0x00,0x0F,0x00,0x00,0xF0,0x00,0x0F,0x00,0x00,0xF0,0x00,0x0F,0x00,0x00,0xEF,0xFE,0x0D,0xFF,0xF0,0xDF,0xFF,0x6E,0xFF,0xEE,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEE,0x00,0x1E,0xC0,0x00,0xE0,0x00,0x04, // 'H'
0x33,0xBD,0xEF,0x7B,0xDE,0xF7,0xBD,0xE7,0x10, // 'I'
0x00,0x00,0x40,0x00,0x0E,0x00,0x01,0xE0,0x00,0x1E,0x00,0x01,0xE0,0x00,0x1E,0x00,0x01,0xE0,0x00,0x1E,0x00,0x01,0xE0,0x00,0x1E,0x00,0x01,0xE0,0x00,0x1E,0x00,0x00,0xE0,0x00,0x06,0xC0,0x00,0x6E,0x00,0x0E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEE,0xFF,0xFE,0xDF,0xFF,0xE3,0xFF,0xFC,0x3F,0xFF,0x80, // 'J'
0x3F,0xFF,0x83,0xFF,0xF8,0xDF,0xFF,0x0E,0xFF,0xE0,0xF0,0x00,0x0F,0x00,0x00,0xF0,0x00,0x0F,0x00,0x00,0xF0,0x00,0x0F,0x00,0x00,0xF0,0x00,0x0F,0x00,0x00,0xF0,0x00,0x0E,0xFF,0xE0,0xDF,0xFF,0x0D,0xFF,0xF6,0xEF,0xFE,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xE0,0x01,0xEC,0x00,0x0E,0x00,0x00,0x40, // 'K'
0x00,0x00,0x30,0x00,0x0E,0x00,0x03,0xC0,0x00,0xF0,0x00,0x3C,0x00,0x0F,0x00,0x03,0xC0,0x00,0xF0,0x00,0x3C,0x00,0x0F,0x00,0x03,0xC0,0x00,0xE0,0x00,0x30,0x00,0x0C,0x00,0x03,0x80,0x00,0xF0,0x00,0x3C,0x00,0x0F,0x00,0x03,0xC0,0x00,0xF0,0x00,0x3C,0x00,0x0F,0x00,0x03,0xC0,0x00,0xF0,0x00,0x3B,0xFF,0x8D,0xFF,0xF0,0xFF,0xFE,0x3F,0xFF,0x80, // 'L'
0x3F,0xFF,0x83,0xFF,0xFC,0xDF,0xFF,0xEE,0xFF,0xFE,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEE,0x00,0x0E,0xC0,0x00,0x6C,0x00,0x06,0xE0,0x00,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xE0,0x01,0xEC,0x00,0x0E,0x00,0x00,0x40, // 'M'
0x0F,0xFE,0x01,0xFF,0xF0,0xDF,0xFF,0x6E,0xFF,0xEE,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEE,0x00,0x1E,0xC0,0x00,0xE0,0x00,0x04, // 'N'
0x0F,0xFE,0x01,0xFF,0xF0,0xDF,0xFF,0x6E,0xFF,0xEE,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEE,0xFF,0xFE,0xDF,0xFF,0xE3,0xFF,0xFC,0x3F,0xFF,0x80, // 'O'
0x3F,0xFF,0x83,0xFF,0xFC,0xDF,0xFF,0xEE,0xFF,0xFE,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEE,0xFF,0xEE,0xDF,0xFF,0x6D,0xFF,0xF0,0xEF,0xFE,0x0F,0x00,0x00,0xF0,0x00,0x0F,0x00,0x00,0xF0,0x00,0x0F,0x00,0x00,0xF0,0x00,0x0F,0x00,0x00,0xF0,0x00,0x0F,0x00,0x00,0xE0,0x00,0x0C,0x00,0x00,0x00,0x00,0x00, // 'P'
0x3F,0xFF,0x83,0xFF,0xFC,0xDF,0xFF,0xEE,0xFF,0xFE,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEE,0xFF,0xEE,0xDF,0xFF,0x61,0xFF,0xF6,0x0F,0xFE,0xE0,0x00,0x1E,0x00,0x01,0xE0,0x00,0x1E,0x00,0x01,0xE0,0x00,0x1E,0x00,0x01,0xE0,0x00,0x1E,0x00,0x01,0xE0,0x00,0x1E,0x00,0x01,0xE0,0x00,0x0E,0x00,0x00,0x40, // 'Q'
0x0F,0xFE,0x0F,0xFF,0xB7,0xFF,0xDD,0xFF,0xCF,0x00,0x07,0x80,0x03,0xC0,0x01,0xE0,0x00,0xF0,0x00,0x78,0x00,0x3C,0x00,0x1E,0x00,0x0F,0x00,0x07,0x00,0x03,0x00,0x00,0x00,0x00, // 'R'
0x00,0x00,0x0C,0x00,0x00,0xE0,0x00,0x0F,0x00,0x00,0xF0,0x00,0x0F,0x00,0x00,0xF0,0x00,0x0F,0x00,0x00,0xF0,0x00,0x0F,0x00,0x00,0xF0,0x00,0x0F,0x00,0x00,0xEF,0xFE,0x0D,0xFF,0xF0,0x1F,0xFF,0x60,0xFF,0xEE,0x00,0x01,0xE0,0x00,0x1E,0x00,0x01,0xE0,0x00,0x1E,0x00,0x01,0xE0,0x00,0x1E,0x00,0x01,0xE0,0x00,0x1E,0x00,0x01,0xE0,0xFF,0xFE,0x1F,0xFF,0xE3,0xFF,0xFC,0x3F,0xFF,0x80, // 'S'
0x00,0x00,0x30,0x00,0x0E,0x00,0x03,0xC0,0x00,0xF0,0x00,0x3C,0x00,0x0F,0x00,0x03,0xC0,0x00,0xF0,0x00,0x3C,0x00,0x0F,0x00,0x03,0xC0,0x00,0xEF,0xFE,0x37,0xFF,0xCD,0xFF,0xF3,0xBF,0xF8,0xF0,0x00,0x3C,0x00,0x0F,0x00,0x03,0xC0,0x00,0xF0,0x00,0x3C,0x00,0x0F,0x00,0x03,0xC0,0x00,0xF0,0x00,0x3B,0xFF,0x8D,0xFF,0xF0,0xFF,0xFE,0x3F,0xFF,0x80, // 'T'
0xC0,0x00,0x6E,0x00,0x0E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEE,0xFF,0xFE,0xDF,0xFF,0xE3,0xFF,0xFC,0x3F,0xFF,0x80, // 'U'
0x00,0x00,0x4C,0x00,0x0E,0xE0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xE0,0x00,0xEC,0x00,0x06,0xC0,0x00,0x6E,0x00,0x0E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEE,0xFF,0xFE,0xDF,0xFF,0xE3,0xFF,0xFC,0x3F,0xFF,0x80, // 'V'
0x00,0x00,0x4C,0x00,0x0E,0xE0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xEF,0xFE,0xED,0xFF,0xF6,0xDF,0xFF,0x6E,0xFF,0xEE,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEE,0xFF,0xFE,0xDF,0xFF,0xE3,0xFF,0xFC,0x3F,0xFF,0x80, // 'W'
0x00,0x00,0x4C,0x00,0x0E,0xE0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xEF,0xFE,0xED,0xFF,0xF6,0xDF,0xFF,0x6E,0xFF,0xEE,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEE,0x00,0x1E,0xC0,0x00,0xE0,0x00,0x04, // 'X'
0x00,0x00,0x4C,0x00,0x0E,0xE0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xEF,0xFE,0xED,0xFF,0xF6,0x1F,0xFF,0x60,0xFF,0xEE,0x00,0x01,0xE0,0x00,0x1E,0x00,0x01,0xE0,0x00,0x1E,0x00,0x01,0xE0,0x00,0x1E,0x00,0x01,0xE0,0x00,0x1E,0x00,0x01,0xE0,0xFF,0xFE,0x1F,0xFF,0xE3,0xFF,0xFC,0x3F,0xFF,0x80, // 'Y'
0x3F,0xFF,0x83,0xFF,0xFC,0x1F,0xFF,0xE0,0xFF,0xFE,0x00,0x01,0xE0,0x00,0x1E,0x00,0x01,0xE0,0x00,0x1E,0x00,0x01,0xE0,0x00,0x1E,0x00,0x01,0xE0,0x00,0x1E,0x00,0x01,0xE0,0x00,0x0E,0x00,0x00,0x6C,0x00,0x00,0xE0,0x00,0x0F,0x00,0x00,0xF0,0x00,0x0F,0x00,0x00,0xF0,0x00,0x0F,0x00,0x00,0xF0,0x00,0x0F,0x00,0x00,0xF0,0x00,0x0F,0x00,0x00,0xEF,0xFE,0x0D,0xFF,0xF0,0x3F,0xFF,0x83,0xFF,0xF8, // 'Z'
0xFF,0x40,0xA0,0x50,0x28,0x14,0x0A,0x05,0x02,0x81,0x40,0xA0,0x50,0x28,0x14,0x0A,0x05,0x02,0x81,0x40,0xA0,0x5F,0xE0, // '['
0xFF,0x40,0xA0,0x50,0x28,0x14,0x0A,0x05,0x02,0x81,0x40,0xA0,0x50,0x28,0x14,0x0A,0x05,0x02,0x81,0x40,0xA0,0x5F,0xE0, // '\'
0xFF,0x40,0xA0,0x50,0x28,0x14,0x0A,0x05,0x02,0x81,0x40,0xA0,0x50,0x28,0x14,0x0A,0x05,0x02,0x81,0x40,0xA0,0x5F,0xE0, // ']'
0xFF,0x40,0xA0,0x50,0x28,0x14,0x0A,0x05,0x02,0x81,0x40,0xA0,0x50,0x28,0x14,0x0A,0x05,0x02,0x81,0x40,0xA0,0x5F,0xE0, // '^'
0xFF,0x40,0xA0,0x50,0x28,0x14,0x0A,0x05,0x02,0x81,0x40,0xA0,0x50,0x28,0x14,0x0A,0x05,0x02,0x81,0x40,0xA0,0x5F,0xE0, // '_'
0xFF,0x40,0xA0,0x50,0x28,0x14,0x0A,0x05,0x02,0x81,0x40,0xA0,0x50,0x28,0x14,0x0A,0x05,0x02,0x81,0x40,0xA0,0x5F,0xE0, // '`'
0x3F,0xFF,0x83,0xFF,0xFC,0xDF,0xFF,0xEE,0xFF,0xFE,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEE,0xFF,0xEE,0xDF,0xFF,0x6D,0xFF,0xF6,0xEF,0xFE,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xE0,0x01,0xEC,0x00,0x0E,0x00,0x00,0x40, // 'a'
0x00,0x00,0x0C,0x00,0x00,0xE0,0x00,0x0F,0x00,0x00,0xF0,0x00,0x0F,0x00,0x00,0xF0,0x00,0x0F,0x00,0x00,0xF0,0x00,0x0F,0x00,0x00,0xF0,0x00,0x0F,0x00,0x00,0xEF,0xFE,0x0D,0xFF,0xF0,0xDF,0xFF,0x6E,0xFF,0xEE,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEE,0xFF,0xFE,0xDF,0xFF,0xE3,0xFF,0xFC,0x3F,0xFF,0x80, // 'b'
0x0F,0xFE,0x07,0xFF,0xCD,0xFF,0xF3,0xBF,0xF8,0xF0,0x00,0x3C,0x00,0x0F,0x00,0x03,0xC0,0x00,0xF0,0x00,0x3C,0x00,0x0F,0x00,0x03,0xC0,0x00,0xF0,0x00,0x3B,0xFF,0x8D,0xFF,0xF0,0xFF,0xFE,0x3F,0xFF,0x80, // 'c'
0x00,0x00,0x40,0x00,0x0E,0x00,0x01,0xE0,0x00,0x1E,0x00,0x01,0xE0,0x00,0x1E,0x00,0x01,0xE0,0x00,0x1E,0x00,0x01,0xE0,0x00,0x1E,0x00,0x01,0xE0,0x00,0x1E,0x0F,0xFE,0xE1,0xFF,0xF6,0xDF,0xFF,0x6E,0xFF,0xEE,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEE,0xFF,0xFE,0xDF,0xFF,0xE3,0xFF,0xFC,0x3F,0xFF,0x80, // 'd'
0x3F,0xFF,0x8F,0xFF,0xED,0xFF,0xF3,0xBF,0xF8,0xF0,0x00,0x3C,0x00,0x0F,0x00,0x03,0xC0,0x00,0xF0,0x00,0x3C,0x00,0x0F,0x00,0x03,0xC0,0x00,0xF0,0x00,0x3B,0xFF,0x8D,0xFF,0xF3,0x7F,0xFC,0xEF,0xFE,0x3C,0x00,0x0F,0x00,0x03,0xC0,0x00,0xF0,0x00,0x3C,0x00,0x0F,0x00,0x03,0xC0,0x00,0xF0,0x00,0x3C,0x00,0x0E,0xFF,0xE3,0x7F,0xFC,0x3F,0xFF,0x8F,0xFF,0xE0, // 'e'
0x3F,0xFF,0x8F,0xFF,0xED,0xFF,0xF3,0xBF,0xF8,0xF0,0x00,0x3C,0x00,0x0F,0x00,0x03,0xC0,0x00,0xF0,0x00,0x3C,0x00,0x0F,0x00,0x03,0xC0,0x00,0xF0,0x00,0x3B,0xFF,0x8D,0xFF,0xF3,0x7F,0xFC,0xEF,0xFE,0x3C,0x00,0x0F,0x00,0x03,0xC0,0x00,0xF0,0x00,0x3C,0x00,0x0F,0x00,0x03,0xC0,0x00,0xF0,0x00,0x3C,0x00,0x0E,0x00,0x03,0x00,0x00,0x00,0x00,0x00, // 'f'
0x3F,0xFF,0x83,0xFF,0xF8,0xDF,0xFF,0x0E,0xFF,0xE0,0xF0,0x00,0x0F,0x00,0x00,0xF0,0x00,0x0F,0x00,0x00,0xF0,0x00,0x0F,0x00,0x00,0xF0,0x00,0x0F,0x00,0x00,0xF0,0x00,0x0E,0x00,0x00,0xC0,0x00,0x0C,0x00,0x06,0xE0,0x00,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xEF,0xFF,0xED,0xFF,0xFE,0x3F,0xFF,0xC3,0xFF,0xF8, // 'g'
0x00,0x00,0x0C,0x00,0x00,0xE0,0x00,0x0F,0x00,0x00,0xF0,0x00,0x0F,0x00,0x00,0xF0,0x00,0x0F,0x00,0x00,0xF0,0x00,0x0F,0x00,0x00,0xF0,0x00,0x0F,0x00,0x00,0xEF,0xFE,0x0D,0xFF,0xF0,0xDF,0xFF,0x6E,0xFF,0xEE,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEE,0x00,0x1E,0xC0,0x00,0xE0,0x00,0x04, // 'h'
0x33,0xBD,0xEF,0x7B,0xDE,0xF7,0xBD,0xE7,0x10, // 'i'
0x00,0x00,0x40,0x00,0x0E,0x00,0x01,0xE0,0x00,0x1E,0x00,0x01,0xE0,0x00,0x1E,0x00,0x01,0xE0,0x00,0x1E,0x00,0x01,0xE0,0x00,0x1E,0x00,0x01,0xE0,0x00,0x1E,0x00,0x00,0xE0,0x00,0x06,0xC0,0x00,0x6E,0x00,0x0E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEE,0xFF,0xFE,0xDF,0xFF,0xE3,0xFF,0xFC,0x3F,0xFF,0x80, // 'j'
0x3F,0xFF,0x83,0xFF,0xF8,0xDF,0xFF,0x0E,0xFF,0xE0,0xF0,0x00,0x0F,0x00,0x00,0xF0,0x00,0x0F,0x00,0x00,0xF0,0x00,0x0F,0x00,0x00,0xF0,0x00,0x0F,0x00,0x00,0xF0,0x00,0x0E,0xFF,0xE0,0xDF,0xFF,0x0D,0xFF,0xF6,0xEF,0xFE,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xE0,0x01,0xEC,0x00,0x0E,0x00,0x00,0x40, // 'k'
0x00,0x00,0x30,0x00,0x0E,0x00,0x03,0xC0,0x00,0xF0,0x00,0x3C,0x00,0x0F,0x00,0x03,0xC0,0x00,0xF0,0x00,0x3C,0x00,0x0F,0x00,0x03,0xC0,0x00,0xE0,0x00,0x30,0x00,0x0C,0x00,0x03,0x80,0x00,0xF0,0x00,0x3C,0x00,0x0F,0x00,0x03,0xC0,0x00,0xF0,0x00,0x3C,0x00,0x0F,0x00,0x03,0xC0,0x00,0xF0,0x00,0x3B,0xFF,0x8D,0xFF,0xF0,0xFF,0xFE,0x3F,0xFF,0x80, // 'l'
0x3F,0xFF,0x83,0xFF,0xFC,0xDF,0xFF,0xEE,0xFF,0xFE,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEE,0x00,0x0E,0xC0,0x00,0x6C,0x00,0x06,0xE0,0x00,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xE0,0x01,0xEC,0x00,0x0E,0x00,0x00,0x40, // 'm'
0x0F,0xFE,0x01,0xFF,0xF0,0xDF,0xFF,0x6E,0xFF,0xEE,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEE,0x00,0x1E,0xC0,0x00,0xE0,0x00,0x04, // 'n'
0x0F,0xFE,0x01,0xFF,0xF0,0xDF,0xFF,0x6E,0xFF,0xEE,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEE,0xFF,0xFE,0xDF,0xFF,0xE3,0xFF,0xFC,0x3F,0xFF,0x80, // 'o'
0x3F,0xFF,0x83,0xFF,0xFC,0xDF,0xFF,0xEE,0xFF,0xFE,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEE,0xFF,0xEE,0xDF,0xFF,0x6D,0xFF,0xF0,0xEF,0xFE,0x0F,0x00,0x00,0xF0,0x00,0x0F,0x00,0x00,0xF0,0x00,0x0F,0x00,0x00,0xF0,0x00,0x0F,0x00,0x00,0xF0,0x00,0x0F,0x00,0x00,0xE0,0x00,0x0C,0x00,0x00,0x00,0x00,0x00, // 'p'
0x3F,0xFF,0x83,0xFF,0xFC,0xDF,0xFF,0xEE,0xFF,0xFE,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEE,0xFF,0xEE,0xDF,0xFF,0x61,0xFF,0xF6,0x0F,0xFE,0xE0,0x00,0x1E,0x00,0x01,0xE0,0x00,0x1E,0x00,0x01,0xE0,0x00,0x1E,0x00,0x01,0xE0,0x00,0x1E,0x00,0x01,0xE0,0x00,0x1E,0x00,0x01,0xE0,0x00,0x0E,0x00,0x00,0x40, // 'q'
0x0F,0xFE,0x0F,0xFF,0xB7,0xFF,0xDD,0xFF,0xCF,0x00,0x07,0x80,0x03,0xC0,0x01,0xE0,0x00,0xF0,0x00,0x78,0x00,0x3C,0x00,0x1E,0x00,0x0F,0x00,0x07,0x00,0x03,0x00,0x00,0x00,0x00, // 'r'
0x00,0x00,0x0C,0x00,0x00,0xE0,0x00,0x0F,0x00,0x00,0xF0,0x00,0x0F,0x00,0x00,0xF0,0x00,0x0F,0x00,0x00,0xF0,0x00,0x0F,0x00,0x00,0xF0,0x00,0x0F,0x00,0x00,0xEF,0xFE,0x0D,0xFF,0xF0,0x1F,0xFF,0x60,0xFF,0xEE,0x00,0x01,0xE0,0x00,0x1E,0x00,0x01,0xE0,0x00,0x1E,0x00,0x01,0xE0,0x00,0x1E,0x00,0x01,0xE0,0x00,0x1E,0x00,0x01,0xE0,0xFF,0xFE,0x1F,0xFF,0xE3,0xFF,0xFC,0x3F,0xFF,0x80, // 's'
0x00,0x00,0x30,0x00,0x0E,0x00,0x03,0xC0,0x00,0xF0,0x00,0x3C,0x00,0x0F,0x00,0x03,0xC0,0x00,0xF0,0x00,0x3C,0x00,0x0F,0x00,0x03,0xC0,0x00,0xEF,0xFE,0x37,0xFF,0xCD,0xFF,0xF3,0xBF,0xF8,0xF0,0x00,0x3C,0x00,0x0F,0x00,0x03,0xC0,0x00,0xF0,0x00,0x3C,0x00,0x0F,0x00,0x03,0xC0,0x00,0xF0,0x00,0x3B,0xFF,0x8D,0xFF,0xF0,0xFF,0xFE,0x3F,0xFF,0x80, // 't'
0xC0,0x00,0x6E,0x00,0x0E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEE,0xFF,0xFE,0xDF,0xFF,0xE3,0xFF,0xFC,0x3F,0xFF,0x80, // 'u'
0x00,0x00,0x4C,0x00,0x0E,0xE0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xE0,0x00,0xEC,0x00,0x06,0xC0,0x00,0x6E,0x00,0x0E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEE,0xFF,0xFE,0xDF,0xFF,0xE3,0xFF,0xFC,0x3F,0xFF,0x80, // 'v'
0x00,0x00,0x4C,0x00,0x0E,0xE0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xEF,0xFE,0xED,0xFF,0xF6,0xDF,0xFF,0x6E,0xFF,0xEE,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEE,0xFF,0xFE,0xDF,0xFF,0xE3,0xFF,0xFC,0x3F,0xFF,0x80, // 'w'
0x00,0x00,0x4C,0x00,0x0E,0xE0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xEF,0xFE,0xED,0xFF,0xF6,0xDF,0xFF,0x6E,0xFF,0xEE,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEE,0x00,0x1E,0xC0,0x00,0xE0,0x00,0x04, // 'x'
0x00,0x00,0x4C,0x00,0x0E,0xE0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xF0,0x01,0xEF,0x00,0x1E,0xEF,0xFE,0xED,0xFF,0xF6,0x1F,0xFF,0x60,0xFF,0xEE,0x00,0x01,0xE0,0x00,0x1E,0x00,0x01,0xE0,0x00,0x1E,0x00,0x01,0xE0,0x00,0x1E,0x00,0x01,0xE0,0x00,0x1E,0x00,0x01,0xE0,0xFF,0xFE,0x1F,0xFF,0xE3,0xFF,0xFC,0x3F,0xFF,0x80, // 'y'
0x3F,0xFF,0x83,0xFF,0xFC,0x1F,0xFF,0xE0,0xFF,0xFE,0x00,0x01,0xE0,0x00,0x1E,0x00,0x01,0xE0,0x00,0x1E,0x00,0x01,0xE0,0x00,0x1E,0x00,0x01,0xE0,0x00,0x1E,0x00,0x01,0xE0,0x00,0x0E,0x00,0x00,0x6C,0x00,0x00,0xE0,0x00,0x0F,0x00,0x00,0xF0,0x00,0x0F,0x00,0x00,0xF0,0x00,0x0F,0x00,0x00,0xF0,0x00,0x0F,0x00,0x00,0xF0,0x00,0x0F,0x00,0x00,0xEF,0xFE,0x0D,0xFF,0xF0,0x3F,0xFF,0x83,0xFF,0xF8, // 'z'
0xFF,0x40,0xA0,0x50,0x28,0x14,0x0A,0x05,0x02,0x81,0x40,0xA0,0x50,0x28,0x14,0x0A,0x05,0x02,0x81,0x40,0xA0,0x5F,0xE0, // '{'
0xFF,0x40,0xA0,0x50,0x28,0x14,0x0A,0x05,0x02,0x81,0x40,0xA0,0x50,0x28,0x14,0x0A,0x05,0x02,0x81,0x40,0xA0,0x5F,0xE0, // '|'
0xFF,0x40,0xA0,0x50,0x28,0x14,0x0A,0x05,0x02,0x81,0x40,0xA0,0x50,0x28,0x14,0x0A,0x05,0x02,0x81,0x40,0xA0,0x5F,0xE0 // '}'
};
const GFXglyph DSEG7_Classic_Bold_30Glyphs[] PROGMEM = {
// bitmapOffset, width, height, xAdvance, xOffset, yOffset
{ 0, 1, 1, 7, 0, 0 }, // ' '
{ 1, 1, 1, 25, 0, 0 }, // '!'
{ 2, 9, 20, 12, 1, -20 }, // '"'
{ 25, 9, 20, 12, 1, -20 }, // '#'
{ 48, 9, 20, 12, 1, -20 }, // '$'
{ 71, 9, 20, 12, 1, -20 }, // '%'
{ 94, 9, 20, 12, 1, -20 }, // '&'
{ 117, 9, 20, 12, 1, -20 }, // '''
{ 140, 9, 20, 12, 1, -20 }, // '('
{ 163, 9, 20, 12, 1, -20 }, // ')'
{ 186, 9, 20, 12, 1, -20 }, // '*'
{ 209, 9, 20, 12, 1, -20 }, // '+'
{ 232, 9, 20, 12, 1, -20 }, // ','
{ 255, 15, 4, 25, 5, -17 }, // '-'
{ 263, 5, 4, 1, -2, -4 }, // '.'
{ 266, 9, 20, 12, 1, -20 }, // '/'
{ 289, 20, 30, 25, 3, -30 }, // '0'
{ 364, 5, 28, 25, 18, -29 }, // '1'
{ 382, 20, 30, 25, 3, -30 }, // '2'
{ 457, 19, 30, 25, 4, -30 }, // '3'
{ 529, 20, 28, 25, 3, -29 }, // '4'
{ 599, 20, 30, 25, 3, -30 }, // '5'
{ 674, 20, 30, 25, 3, -30 }, // '6'
{ 749, 20, 29, 25, 3, -30 }, // '7'
{ 822, 20, 30, 25, 3, -30 }, // '8'
{ 897, 20, 30, 25, 3, -30 }, // '9'
{ 972, 5, 16, 7, 1, -23 }, // ':'
{ 982, 9, 20, 12, 1, -20 }, // ';'
{ 1005, 9, 20, 12, 1, -20 }, // '<'
{ 1028, 9, 20, 12, 1, -20 }, // '='
{ 1051, 9, 20, 12, 1, -20 }, // '>'
{ 1074, 9, 20, 12, 1, -20 }, // '?'
{ 1097, 9, 20, 12, 1, -20 }, // '@'
{ 1120, 20, 29, 25, 3, -30 }, // 'A'
{ 1193, 20, 29, 25, 3, -29 }, // 'B'
{ 1266, 18, 17, 25, 3, -17 }, // 'C'
{ 1305, 20, 29, 25, 3, -29 }, // 'D'
{ 1378, 18, 30, 25, 3, -30 }, // 'E'
{ 1446, 18, 29, 25, 3, -30 }, // 'F'
{ 1512, 20, 30, 25, 3, -30 }, // 'G'
{ 1587, 20, 28, 25, 3, -29 }, // 'H'
{ 1657, 5, 14, 25, 18, -15 }, // 'I'
{ 1666, 20, 29, 25, 3, -29 }, // 'J'
{ 1739, 20, 29, 25, 3, -30 }, // 'K'
{ 1812, 18, 29, 25, 3, -29 }, // 'L'
{ 1878, 20, 29, 25, 3, -30 }, // 'M'
{ 1951, 20, 16, 25, 3, -17 }, // 'N'
{ 1991, 20, 17, 25, 3, -17 }, // 'O'
{ 2034, 20, 29, 25, 3, -30 }, // 'P'
{ 2107, 20, 29, 25, 3, -30 }, // 'Q'
{ 2180, 17, 16, 25, 3, -17 }, // 'R'
{ 2214, 20, 29, 25, 3, -29 }, // 'S'
{ 2287, 18, 29, 25, 3, -29 }, // 'T'
{ 2353, 20, 15, 25, 3, -15 }, // 'U'
{ 2391, 20, 29, 25, 3, -29 }, // 'V'
{ 2464, 20, 29, 25, 3, -29 }, // 'W'
{ 2537, 20, 28, 25, 3, -29 }, // 'X'
{ 2607, 20, 29, 25, 3, -29 }, // 'Y'
{ 2680, 20, 30, 25, 3, -30 }, // 'Z'
{ 2755, 9, 20, 12, 1, -20 }, // '['
{ 2778, 9, 20, 12, 1, -20 }, // '\'
{ 2801, 9, 20, 12, 1, -20 }, // ']'
{ 2824, 9, 20, 12, 1, -20 }, // '^'
{ 2847, 9, 20, 12, 1, -20 }, // '_'
{ 2870, 9, 20, 12, 1, -20 }, // '`'
{ 2893, 20, 29, 25, 3, -30 }, // 'a'
{ 2966, 20, 29, 25, 3, -29 }, // 'b'
{ 3039, 18, 17, 25, 3, -17 }, // 'c'
{ 3078, 20, 29, 25, 3, -29 }, // 'd'
{ 3151, 18, 30, 25, 3, -30 }, // 'e'
{ 3219, 18, 29, 25, 3, -30 }, // 'f'
{ 3285, 20, 30, 25, 3, -30 }, // 'g'
{ 3360, 20, 28, 25, 3, -29 }, // 'h'
{ 3430, 5, 14, 25, 18, -15 }, // 'i'
{ 3439, 20, 29, 25, 3, -29 }, // 'j'
{ 3512, 20, 29, 25, 3, -30 }, // 'k'
{ 3585, 18, 29, 25, 3, -29 }, // 'l'
{ 3651, 20, 29, 25, 3, -30 }, // 'm'
{ 3724, 20, 16, 25, 3, -17 }, // 'n'
{ 3764, 20, 17, 25, 3, -17 }, // 'o'
{ 3807, 20, 29, 25, 3, -30 }, // 'p'
{ 3880, 20, 29, 25, 3, -30 }, // 'q'
{ 3953, 17, 16, 25, 3, -17 }, // 'r'
{ 3987, 20, 29, 25, 3, -29 }, // 's'
{ 4060, 18, 29, 25, 3, -29 }, // 't'
{ 4126, 20, 15, 25, 3, -15 }, // 'u'
{ 4164, 20, 29, 25, 3, -29 }, // 'v'
{ 4237, 20, 29, 25, 3, -29 }, // 'w'
{ 4310, 20, 28, 25, 3, -29 }, // 'x'
{ 4380, 20, 29, 25, 3, -29 }, // 'y'
{ 4453, 20, 30, 25, 3, -30 }, // 'z'
{ 4528, 9, 20, 12, 1, -20 }, // '{'
{ 4551, 9, 20, 12, 1, -20 }, // '|'
{ 4574, 9, 20, 12, 1, -20 } // '}'
};
const GFXfont DSEG7_Classic_Bold_30 PROGMEM = {
(uint8_t *)DSEG7_Classic_Bold_30Bitmaps,(GFXglyph *)DSEG7_Classic_Bold_30Glyphs,0x20, 0x7E, 33};
esp32clock.ino
// this code is adapted from the code of Volos Projects
// original code https://github.com/VolosR/InternetClock180x60
// tutorial video https://www.youtube.com/watch?v=T2A4cEktt6Q
// my appreciation for the original writer
// NOTE: change wifi name,password,set time offset according to yours
#include <TFT_eSPI.h>
#include <SPI.h>
#include <WiFi.h>
#include <NTPClient.h> // Please install this library
#include <WiFiUdp.h>
TFT_eSPI tft = TFT_eSPI();
#include "7seg20.h"
#include "Orbitron_Medium_16.h"
#define grey 0x65DB
const char* ssid = "xxxxxx"; // put your wifi name
const char* password = "xxxxxx"; // put your wifi password
WiFiUDP ntpUDP;
NTPClient timeClient(ntpUDP);
String timeStamp;
String se="";
String dayStamp="";
void setup() {
tft.init();
tft.setRotation(3);
tft.setSwapBytes(true);
tft.fillScreen(TFT_BLACK);
tft.setTextColor(TFT_WHITE, TFT_BLACK);
connectToWifi();
timeClient.begin();
timeClient.setTimeOffset(6 * 3600); // set time offset GMT +6
delay(100);
tft.setTextColor(0x0EBA, TFT_BLACK);
tft.setFreeFont(&Orbitron_Medium_16);
tft.drawString("Clock", 6, 1);
}
void loop() {
timeClient.update();
time_t raw = timeClient.getEpochTime();
struct tm * ti = localtime(&raw);
int hour24 = ti->tm_hour;
bool isPM = false;
if(hour24 >= 12) isPM = true;
int hour12 = hour24 % 12;
if(hour12 == 0) hour12 = 12;
const char* weekdays[] = {
"Sunday","Monday","Tuesday","Wednesday",
"Thursday","Friday","Saturday"
};
String currentWeekday = String(weekdays[ti->tm_wday]);
const char* months[] = {
"Jan","Feb","Mar","Apr","May","Jun",
"Jul","Aug","Sep","Oct","Nov","Dec"
};
char timeBuffer[6];
sprintf(timeBuffer,"%02d:%02d", hour12, ti->tm_min);
timeStamp = String(timeBuffer);
char secBuffer[3];
sprintf(secBuffer,"%02d", ti->tm_sec);
se = String(secBuffer);
char dateBuffer[25];
sprintf(dateBuffer,"%02d %s %04d", ti->tm_mday, months[ti->tm_mon], ti->tm_year+1900);
dayStamp = String(dateBuffer);
// ===== WEEKDAY =====
static String lastWeekday = "";
if(lastWeekday != currentWeekday) {
lastWeekday = currentWeekday;
tft.fillRect(70,2,100,30,TFT_BLACK);
tft.setTextFont(2);
tft.setTextColor(0xfe20, TFT_BLACK);
tft.drawString(currentWeekday, 85, 5, 2);
}
// ===== TIME =====
static String lastTime = "";
if(lastTime != timeStamp) {
lastTime = timeStamp;
tft.setTextColor(TFT_WHITE, TFT_BLACK);
tft.setFreeFont(&DSEG7_Classic_Bold_30);
tft.drawString(timeStamp,2,46);
}
// ===== DATE =====
static String lastDate = "";
if(lastDate != dayStamp) {
lastDate = dayStamp;
tft.fillRect(0,20,160,24,TFT_BLACK);
tft.setTextColor(grey, TFT_BLACK);
tft.setFreeFont(&Orbitron_Medium_16);
tft.drawString(dayStamp,6,22);
}
// ===== AM/PM =====
static bool lastIsPM = false;
static bool firstAMPM = true;
if(firstAMPM || lastIsPM != isPM) {
firstAMPM = false;
lastIsPM = isPM;
tft.fillRect(112,45,40,15,TFT_BLACK);
tft.setTextFont(2);
tft.setTextColor(0xf817, TFT_BLACK);
tft.drawString(isPM ? "PM" : "AM",120,46);
}
// ===== SECONDS =====
static String lastSec = "";
if(lastSec != se) {
lastSec = se;
tft.fillRect(112,60,40,30,TFT_BLACK);
tft.setFreeFont(&Orbitron_Medium_16);
tft.setTextColor(TFT_WHITE, TFT_BLACK);
tft.drawString(se,114,60);
}
delay(200);
}
void connectToWifi() {
tft.setTextFont(2);
tft.println("");
tft.print("Connecting..");
WiFi.begin(ssid, password);
while (WiFi.status() != WL_CONNECTED) {
delay(300);
tft.print(".");
}
tft.println("");
tft.println("WiFi connected");
tft.println(WiFi.localIP());
delay(2000);
tft.fillScreen(TFT_BLACK);
}

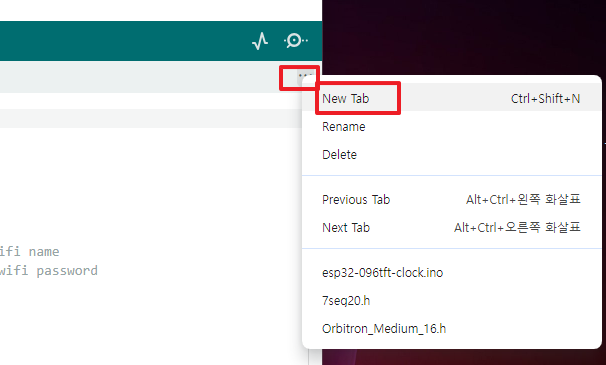

Orbitron_Medium_16.h
const uint8_t Orbitron_Medium_16Bitmaps[] PROGMEM = {
// Bitmap Data:
0x00, // ' '
0xDB,0x6D,0xB6,0xC3,0x60, // '!'
0xF7,0xBC, // '"'
0x0C,0x61,0x8C,0xFF,0xEF,0xFE,0x31,0x83,0x18,0x21,0x0F,0xFE,0x63,0x04,0x30,0xC6,0x00, // '#'
0x0C,0x07,0xF8,0xFF,0xE8,0xC6,0x8C,0x08,0xC0,0xFF,0xCF,0xFE,0x0C,0x60,0xC6,0x8C,0x6F,0xFE,0xFF,0xC0,0xC0,0x0C,0x00, // '$'
0x20,0x09,0xF0,0x32,0x20,0xE4,0x43,0x08,0x8C,0x0F,0x70,0x01,0xC0,0x07,0x7C,0x1C,0x8C,0x61,0x19,0x83,0x32,0x03,0xC0, // '%'
0x3F,0x81,0xFF,0x8C,0x06,0x30,0x00,0xC0,0x01,0xC0,0x0D,0xC2,0x33,0xC8,0xC3,0xE3,0x03,0xCF,0xFF,0x9F,0xFA, // '&'
0xDB,0x00, // '''
0x2E,0xCC,0xCC,0xCC,0xCC,0xE6, // '('
0x8C,0x66,0x66,0x66,0x66,0xEC, // ')'
0x18,0x18,0x5E,0xFE,0x38,0x3C,0x66, // '*'
0x10,0x10,0xFE,0xFE,0x10,0x10, // '+'
0xDB,0x40, // ','
0xFD,0xF8, // '-'
0xD8, // '.'
0x01,0x00,0x80,0xC0,0xC0,0x60,0x60,0x60,0x60,0x60,0x60,0x30,0x10,0x00, // '/'
0x3F,0xCF,0xFE,0xC0,0x6C,0x0E,0xC3,0xAC,0x72,0xCE,0x2D,0xC2,0xF0,0x2E,0x02,0xFF,0xE7,0xFE, // '0'
0x18,0xE3,0x9A,0x88,0x20,0x82,0x08,0x20,0x82, // '1'
0x3F,0xCF,0xFE,0xC0,0x20,0x02,0x00,0x20,0x02,0xFF,0xEC,0x00,0xC0,0x0C,0x00,0xFF,0xEF,0xFE, // '2'
0x3F,0x8F,0xFE,0xC0,0x60,0x06,0x00,0x63,0xFE,0x3F,0xE0,0x02,0x00,0x2C,0x02,0xFF,0xE7,0xFE, // '3'
0x00,0x80,0x18,0x07,0x80,0xE8,0x1C,0x83,0x88,0x70,0x8F,0xFE,0xFF,0xE0,0x08,0x00,0x80,0x08, // '4'
0xFF,0xEF,0xFE,0xC0,0x0C,0x00,0xC0,0x0F,0xFC,0xFF,0xE0,0x02,0x00,0x2C,0x02,0xFF,0xE7,0xFE, // '5'
0x3F,0xCF,0xFC,0xC0,0x0C,0x00,0xC0,0x0F,0xFC,0xFF,0xEC,0x02,0xC0,0x2C,0x02,0xFF,0xE7,0xFE, // '6'
0xFF,0x1F,0xF0,0x03,0x00,0x60,0x0C,0x01,0x80,0x30,0x06,0x00,0xC0,0x18,0x03,0x00,0x60, // '7'
0x3F,0xCF,0xFE,0xC0,0x2C,0x02,0xC0,0x2F,0xFE,0xFF,0xEC,0x02,0xC0,0x2C,0x02,0xFF,0xE7,0xFE, // '8'
0x3F,0x8F,0xFE,0xC0,0x2C,0x02,0xC0,0x2C,0x02,0xFF,0xE0,0x02,0x00,0x20,0x02,0xFF,0xE7,0xFE, // '9'
0xC0,0x00,0x06,0xC0, // ':'
0xC0,0x00,0x06,0xD2,0x00, // ';'
0x06,0x1E,0x38,0xE0,0xC0,0x70,0x3C,0x0E,0x02, // '<'
0xFF,0x7F,0x80,0x1F,0xEF,0xF0, // '='
0x80,0xE0,0x78,0x1E,0x0E,0x3C,0x70,0xC0,0x80, // '>'
0xFF,0x1F,0xF0,0x03,0x00,0x60,0x0C,0x01,0x8F,0xE3,0xF8,0x60,0x00,0x01,0x80,0x30,0x00, // '?'
0x3F,0xCF,0xFE,0xC0,0x2C,0x02,0xDF,0x2D,0x12,0xD1,0x2D,0x12,0xCF,0xEC,0x00,0xFF,0xE7,0xFE, // '@'
0x3F,0xCF,0xFE,0xC0,0x2C,0x02,0xC0,0x2C,0x02,0xFF,0xEF,0xFE,0xC0,0x2C,0x02,0xC0,0x2C,0x02, // 'A'
0xFF,0x8F,0xFE,0xC0,0x6C,0x06,0xC0,0x6F,0xFE,0xFF,0xEC,0x02,0xC0,0x2C,0x02,0xFF,0xEF,0xFE, // 'B'
0x3F,0xEF,0xFE,0xC0,0x0C,0x00,0xC0,0x0C,0x00,0xC0,0x0C,0x00,0xC0,0x0C,0x00,0xFF,0xE7,0xFE, // 'C'
0xFF,0xCF,0xFE,0xC0,0x2C,0x02,0xC0,0x2C,0x02,0xC0,0x2C,0x02,0xC0,0x2C,0x02,0xFF,0xEF,0xFE, // 'D'
0xFF,0xDF,0xFB,0x00,0x60,0x0C,0x01,0xFF,0x3F,0xE6,0x00,0xC0,0x18,0x03,0xFF,0x7F,0xE0, // 'E'
0xFF,0xDF,0xFB,0x00,0x60,0x0C,0x01,0xFF,0x3F,0xE6,0x00,0xC0,0x18,0x03,0x00,0x60,0x00, // 'F'
0x3F,0xCF,0xFE,0xC0,0x2C,0x00,0xC0,0x0C,0x00,0xC1,0xEC,0x02,0xC0,0x2C,0x02,0xFF,0xE7,0xFE, // 'G'
0xC0,0x36,0x01,0xB0,0x0D,0x80,0x6C,0x03,0x7F,0xFB,0xFF,0xD8,0x06,0xC0,0x36,0x01,0xB0,0x0D,0x80,0x60, // 'H'
0xDB,0x6D,0xB6,0xDB,0x60, // 'I'
0x00,0x30,0x01,0x80,0x0C,0x00,0x60,0x03,0x00,0x18,0x00,0xC0,0x06,0x00,0x36,0x01,0xBF,0xFC,0xFF,0xC0, // 'J'
0xC0,0x6C,0x0C,0xC1,0xCC,0x38,0xC3,0x0F,0xE0,0xFE,0x0C,0x60,0xC3,0x0C,0x18,0xC0,0xCC,0x06, // 'K'
0xC0,0x0C,0x00,0xC0,0x0C,0x00,0xC0,0x0C,0x00,0xC0,0x0C,0x00,0xC0,0x0C,0x00,0xFF,0xEF,0xFE, // 'L'
0xC0,0x1B,0x80,0xEF,0x07,0xBC,0x3E,0xD8,0xDB,0x36,0x6C,0x71,0xB0,0x86,0xC2,0x1B,0x00,0x6C,0x01,0xB0,0x06, // 'M'
0xC0,0x2E,0x02,0xF0,0x2F,0x02,0xD8,0x2C,0xC2,0xC6,0x2C,0x32,0xC3,0xAC,0x1E,0xC0,0xEC,0x06, // 'N'
0x3F,0x8F,0xFE,0xC0,0x2C,0x02,0xC0,0x2C,0x02,0xC0,0x2C,0x02,0xC0,0x2C,0x02,0xFF,0xE7,0xFE, // 'O'
0xFF,0x8F,0xFE,0xC0,0x2C,0x02,0xC0,0x2C,0x02,0xFF,0xEF,0xFE,0xC0,0x0C,0x00,0xC0,0x0C,0x00, // 'P'
0x3F,0x83,0xFF,0x8C,0x02,0x30,0x08,0xC0,0x23,0x00,0x8C,0x02,0x30,0x08,0xC0,0x23,0x00,0x8F,0xFF,0x9F,0xFE, // 'Q'
0xFF,0x8F,0xFE,0xC0,0x2C,0x02,0xC0,0x2C,0x02,0xFF,0xEF,0xFE,0xC3,0x8C,0x1C,0xC0,0xCC,0x06, // 'R'
0x3F,0x8F,0xFE,0xC0,0x2C,0x00,0xC0,0x0F,0xFC,0xFF,0xE0,0x02,0x00,0x2C,0x02,0xFF,0xE7,0xFE, // 'S'
0xFF,0xF7,0xFF,0x81,0x80,0x0C,0x00,0x60,0x03,0x00,0x18,0x00,0xC0,0x06,0x00,0x30,0x01,0x80,0x0C,0x00, // 'T'
0xC0,0x2C,0x02,0xC0,0x2C,0x02,0xC0,0x2C,0x02,0xC0,0x2C,0x02,0xC0,0x2C,0x02,0xFF,0xE7,0xFE, // 'U'
0xC0,0x06,0xC0,0x0C,0x60,0x18,0x60,0x18,0x30,0x30,0x30,0x30,0x18,0x60,0x0C,0x60,0x0C,0xC0,0x07,0x80,0x07,0x80,0x03,0x00, // 'V'
0x80,0x81,0xB0,0x70,0x6C,0x1C,0x19,0x8D,0x0C,0x63,0x63,0x18,0xD8,0x83,0x63,0x60,0xD8,0xD8,0x34,0x34,0x07,0x07,0x01,0xC1,0xC0,0x20,0x20, // 'W'
0xC0,0x6E,0x0E,0x60,0xC3,0x18,0x1B,0x00,0xE0,0x0E,0x01,0xF0,0x3B,0x83,0x18,0x60,0xCC,0x06, // 'X'
0xC0,0x19,0x80,0xC3,0x06,0x0E,0x30,0x19,0xC0,0x36,0x00,0x70,0x01,0x80,0x02,0x00,0x08,0x00,0x20,0x00,0x80, // 'Y'
0xFF,0xEF,0xFE,0x00,0x60,0x1C,0x03,0x80,0x70,0x0E,0x01,0x80,0x30,0x0E,0x00,0xFF,0xEF,0xFE, // 'Z'
0xEE,0xCC,0xCC,0xCC,0xCC,0xEE, // '['
0x80,0x40,0x30,0x0C,0x03,0x00,0xC0,0x60,0x18,0x06,0x01,0x80,0x40,0x20, // '\'
0xEE,0x66,0x66,0x66,0x66,0xEE, // ']'
0x00, // '^'
0xFF,0xEF,0xFE, // '_'
0x9B,0x00, // '`'
0xFF,0x80,0x60,0x08,0x02,0xFF,0xB0,0x2C,0x0B,0xFE,0x7F,0x80, // 'a'
0xC0,0x30,0x0C,0x03,0xFE,0xC1,0xB0,0x2C,0x0B,0x02,0xC0,0xB0,0x2F,0xFB,0xFE, // 'b'
0xFF,0xB0,0x0C,0x03,0x00,0xC0,0x30,0x0C,0x03,0xFE,0x7F,0x80, // 'c'
0x00,0xC0,0x18,0x03,0x3F,0xEC,0x0D,0x81,0xB0,0x36,0x06,0xC0,0xD8,0x1B,0xFF,0x3F,0xE0, // 'd'
0xFF,0xB0,0x6C,0x0B,0x02,0xFF,0xB0,0x0C,0x03,0xFE,0x7F,0x80, // 'e'
0xFB,0x0C,0x3E,0xC3,0x0C,0x30,0xC3,0x0C,0x30, // 'f'
0xFF,0xB0,0x68,0x1A,0x06,0x81,0xA0,0x68,0x1B,0xFE,0xFF,0x80,0x60,0x19,0xFE,0x7F,0x00, // 'g'
0xC0,0x30,0x0C,0x03,0xFE,0xC1,0xB0,0x2C,0x0B,0x02,0xC0,0xB0,0x2C,0x0B,0x02, // 'h'
0xC0,0x6D,0xB6,0xDB,0x60, // 'i'
0x0C,0x00,0x00,0x60,0xC1,0x83,0x06,0x0C,0x18,0x30,0x60,0xC1,0xBF,0x7C, // 'j'
0xC0,0x30,0x0C,0x03,0x0E,0xC3,0x31,0x8C,0xC3,0xE0,0xCC,0x31,0x8C,0x33,0x06, // 'k'
0xC6,0x31,0x8C,0x63,0x18,0xC6,0x3C,0xE0, // 'l'
0xFF,0xF9,0x86,0x1B,0x0C,0x36,0x18,0x6C,0x30,0xD8,0x61,0xB0,0xC3,0x61,0x86,0xC3,0x0C, // 'm'
0xFF,0xB0,0x6C,0x0B,0x02,0xC0,0xB0,0x2C,0x0B,0x02,0xC0,0x80, // 'n'
0xFF,0xB0,0x6C,0x0B,0x02,0xC0,0xB0,0x2C,0x0B,0xFE,0x7F,0x80, // 'o'
0xFF,0xB0,0x6C,0x0B,0x02,0xC0,0xB0,0x2C,0x0B,0xFE,0xFF,0xB0,0x0C,0x03,0x00,0xC0,0x00, // 'p'
0x7F,0xD8,0x1B,0x03,0x60,0x6C,0x0D,0x81,0xB0,0x37,0xFE,0x7F,0xC0,0x18,0x03,0x00,0x60,0x0C, // 'q'
0xFE,0xC0,0xC0,0xC0,0xC0,0xC0,0xC0,0xC0,0xC0, // 'r'
0xFF,0xB0,0x6C,0x03,0xF8,0xFF,0x80,0x60,0x1B,0xFE,0xFF,0x00, // 's'
0xC3,0x0C,0x3E,0xC3,0x0C,0x30,0xC3,0x0F,0x9E, // 't'
0xC0,0xB0,0x2C,0x0B,0x02,0xC0,0xB0,0x2C,0x0B,0xFE,0x7F,0x80, // 'u'
0xE0,0x33,0x03,0x0C,0x18,0x61,0x81,0x8C,0x04,0xC0,0x36,0x00,0xE0,0x06,0x00, // 'v'
0xC3,0x87,0x61,0xC3,0x19,0xB1,0x8C,0xD9,0x86,0x66,0xC1,0xE3,0x40,0xF0,0xE0,0x30,0x70,0x18,0x30,0x00, // 'w'
0xC1,0x98,0xC3,0x60,0x70,0x1C,0x0F,0x83,0x61,0x8C,0xC1,0x80, // 'x'
0x81,0xA0,0x68,0x1A,0x06,0x81,0xA0,0x68,0x1B,0xFE,0xFF,0x80,0x60,0x19,0xFE,0x7F,0x00, // 'y'
0xFF,0x80,0x60,0x30,0x38,0x1C,0x0C,0x0E,0x03,0xFE,0xFF,0x80, // 'z'
0x13,0x98,0xC6,0x63,0x0C,0x63,0x1C,0x60, // '{'
0xDB,0x6D,0xB6,0xDB,0x6D,0xB0, // '|'
0x8C,0x66,0x66,0x26,0x66,0xCC // '}'
};
const GFXglyph Orbitron_Medium_16Glyphs[] PROGMEM = {
// bitmapOffset, width, height, xAdvance, xOffset, yOffset
{ 0, 1, 1, 6, 0, 0 }, // ' '
{ 1, 3, 12, 5, 1, -12 }, // '!'
{ 6, 5, 3, 7, 1, -12 }, // '"'
{ 8, 12, 11, 14, 1, -11 }, // '#'
{ 25, 12, 15, 14, 1, -13 }, // '$'
{ 48, 15, 12, 16, 1, -12 }, // '%'
{ 71, 14, 12, 16, 1, -12 }, // '&'
{ 92, 3, 3, 5, 1, -12 }, // '''
{ 94, 4, 12, 5, 1, -12 }, // '('
{ 100, 4, 12, 5, 1, -12 }, // ')'
{ 106, 8, 7, 9, 0, -12 }, // '*'
{ 113, 8, 6, 8, 0, -8 }, // '+'
{ 119, 3, 4, 4, 1, -2 }, // ','
{ 121, 7, 2, 9, 1, -6 }, // '-'
{ 123, 3, 2, 4, 1, -2 }, // '.'
{ 124, 9, 12, 9, 0, -12 }, // '/'
{ 138, 12, 12, 14, 1, -12 }, // '0'
{ 156, 6, 12, 7, 0, -12 }, // '1'
{ 165, 12, 12, 14, 1, -12 }, // '2'
{ 183, 12, 12, 14, 1, -12 }, // '3'
{ 201, 12, 12, 13, 0, -12 }, // '4'
{ 219, 12, 12, 14, 1, -12 }, // '5'
{ 237, 12, 12, 14, 1, -12 }, // '6'
{ 255, 11, 12, 12, 0, -12 }, // '7'
{ 272, 12, 12, 14, 1, -12 }, // '8'
{ 290, 12, 12, 14, 1, -12 }, // '9'
{ 308, 3, 9, 4, 1, -9 }, // ':'
{ 312, 3, 11, 4, 1, -9 }, // ';'
{ 317, 8, 9, 9, 0, -9 }, // '<'
{ 326, 9, 5, 11, 1, -7 }, // '='
{ 332, 8, 9, 9, 1, -9 }, // '>'
{ 341, 11, 12, 12, 1, -12 }, // '?'
{ 358, 12, 12, 14, 1, -12 }, // '@'
{ 376, 12, 12, 14, 1, -12 }, // 'A'
{ 394, 12, 12, 14, 1, -12 }, // 'B'
{ 412, 12, 12, 14, 1, -12 }, // 'C'
{ 430, 12, 12, 14, 1, -12 }, // 'D'
{ 448, 11, 12, 13, 1, -12 }, // 'E'
{ 465, 11, 12, 13, 1, -12 }, // 'F'
{ 482, 12, 12, 14, 1, -12 }, // 'G'
{ 500, 13, 12, 15, 1, -12 }, // 'H'
{ 520, 3, 12, 5, 1, -12 }, // 'I'
{ 525, 13, 12, 13, 0, -12 }, // 'J'
{ 545, 12, 12, 14, 1, -12 }, // 'K'
{ 563, 12, 12, 13, 1, -12 }, // 'L'
{ 581, 14, 12, 16, 1, -12 }, // 'M'
{ 602, 12, 12, 14, 1, -12 }, // 'N'
{ 620, 12, 12, 14, 1, -12 }, // 'O'
{ 638, 12, 12, 14, 1, -12 }, // 'P'
{ 656, 14, 12, 15, 1, -12 }, // 'Q'
{ 677, 12, 12, 14, 1, -12 }, // 'R'
{ 695, 12, 12, 14, 1, -12 }, // 'S'
{ 713, 13, 12, 13, 0, -12 }, // 'T'
{ 733, 12, 12, 14, 1, -12 }, // 'U'
{ 751, 16, 12, 17, 1, -12 }, // 'V'
{ 775, 18, 12, 20, 1, -12 }, // 'W'
{ 802, 12, 12, 14, 1, -12 }, // 'X'
{ 820, 14, 12, 14, 0, -12 }, // 'Y'
{ 841, 12, 12, 14, 1, -12 }, // 'Z'
{ 859, 4, 12, 5, 1, -12 }, // '['
{ 865, 9, 12, 9, 0, -12 }, // '\'
{ 879, 4, 12, 5, 1, -12 }, // ']'
{ 885, 1, 1, 1, 0, 0 }, // '^'
{ 886, 12, 2, 14, 1, 0 }, // '_'
{ 889, 3, 3, 4, 1, -16 }, // '`'
{ 891, 10, 9, 12, 1, -9 }, // 'a'
{ 903, 10, 12, 12, 1, -12 }, // 'b'
{ 918, 10, 9, 12, 1, -9 }, // 'c'
{ 930, 11, 12, 12, 0, -12 }, // 'd'
{ 947, 10, 9, 12, 1, -9 }, // 'e'
{ 959, 6, 12, 8, 1, -12 }, // 'f'
{ 968, 10, 13, 12, 1, -9 }, // 'g'
{ 985, 10, 12, 12, 1, -12 }, // 'h'
{ 1000, 3, 12, 4, 1, -12 }, // 'i'
{ 1005, 7, 16, 5, -3, -12 }, // 'j'
{ 1019, 10, 12, 11, 1, -12 }, // 'k'
{ 1034, 5, 12, 6, 1, -12 }, // 'l'
{ 1042, 15, 9, 17, 1, -9 }, // 'm'
{ 1059, 10, 9, 12, 1, -9 }, // 'n'
{ 1071, 10, 9, 12, 1, -9 }, // 'o'
{ 1083, 10, 13, 12, 1, -9 }, // 'p'
{ 1100, 11, 13, 12, 0, -9 }, // 'q'
{ 1118, 8, 9, 9, 1, -9 }, // 'r'
{ 1127, 10, 9, 12, 1, -9 }, // 's'
{ 1139, 6, 12, 8, 1, -12 }, // 't'
{ 1148, 10, 9, 12, 1, -9 }, // 'u'
{ 1160, 13, 9, 14, 0, -9 }, // 'v'
{ 1175, 17, 9, 18, 1, -9 }, // 'w'
{ 1195, 10, 9, 12, 1, -9 }, // 'x'
{ 1207, 10, 13, 12, 1, -9 }, // 'y'
{ 1224, 10, 9, 12, 1, -9 }, // 'z'
{ 1236, 5, 12, 6, 0, -12 }, // '{'
{ 1244, 3, 15, 4, 1, -13 }, // '|'
{ 1250, 4, 12, 6, 1, -12 } // '}'
};
const GFXfont Orbitron_Medium_16 PROGMEM = {
(uint8_t *)Orbitron_Medium_16Bitmaps,(GFXglyph *)Orbitron_Medium_16Glyphs,0x20, 0x7E, 16};
반응형
'ESP32' 카테고리의 다른 글
| ESP32를 이용한 장애물 회피 로봇 (0) | 2026.03.04 |
|---|---|
| ESP32 BLE 비콘 스캐너 (0) | 2026.03.03 |
| ESP32 BLE 서버 만들기 가이드와 코드 첨부 (0) | 2026.03.03 |
| ESP32 BLE 클라이언트 만들기 (0) | 2026.03.03 |
| ESP32-C3 기반 스마트 시계 (0) | 2026.02.27 |
| zclaw - ESP32에서 888KB로 구동되는 개인용 AI 비서 (0) | 2026.02.25 |
| zclaw 888KiB ESP32 기반 AI 에이전트 (0) | 2026.02.25 |
| ESP32 보드에서 구동되는 초경량 오픈소스 'zclaw' 공개 (1) | 2026.02.25 |
취업, 창업의 막막함, 외주 관리, 제품 부재!
당신의 고민은 무엇입니까? 현실과 동떨어진 교육, 실패만 반복하는 외주 계약,
아이디어는 있지만 구현할 기술이 없는 막막함.
우리는 알고 있습니다. 문제의 원인은 '명확한 학습, 실전 경험과 신뢰할 수 있는 기술력의 부재'에서 시작됩니다.
이제 고민을 멈추고, 캐어랩을 만나세요!
코딩(펌웨어), 전자부품과 디지털 회로설계, PCB 설계 제작, 고객(시장/수출) 발굴과 마케팅 전략으로 당신을 지원합니다.
제품 설계의 고수는 성공이 만든 게 아니라 실패가 만듭니다. 아이디어를 양산 가능한 제품으로!
귀사의 제품을 만드세요. 교육과 개발 실적으로 신뢰할 수 있는 파트너를 확보하세요.
캐어랩
